Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 32255 Valve,mixing Appelez-nous -
2 25817C Screw Appelez-nous -
3 24128 Sleeve,long Appelez-nous -
4 Y24127 Mounting Bracket Appelez-nous -
5 Y24135 Plug,flow Regulator Appelez-nous -
6 21438B Regulator,flow Appelez-nous -
7 23224C Regulator,flow Appelez-nous -
8 24126 Solenoid Appelez-nous -
9 24129 Sleeve,short Appelez-nous -
10 24130 Guide,armature Appelez-nous -
11 24131 Spring Appelez-nous -
12 24132 Armature Appelez-nous -
13 24134 Diaphragm Appelez-nous -
14 24125 Body,valve Appelez-nous -
15 24122 Inlet Screen Special Order $ 8.42


    View Diagram in Separate Window     Print Icon   Print Part List

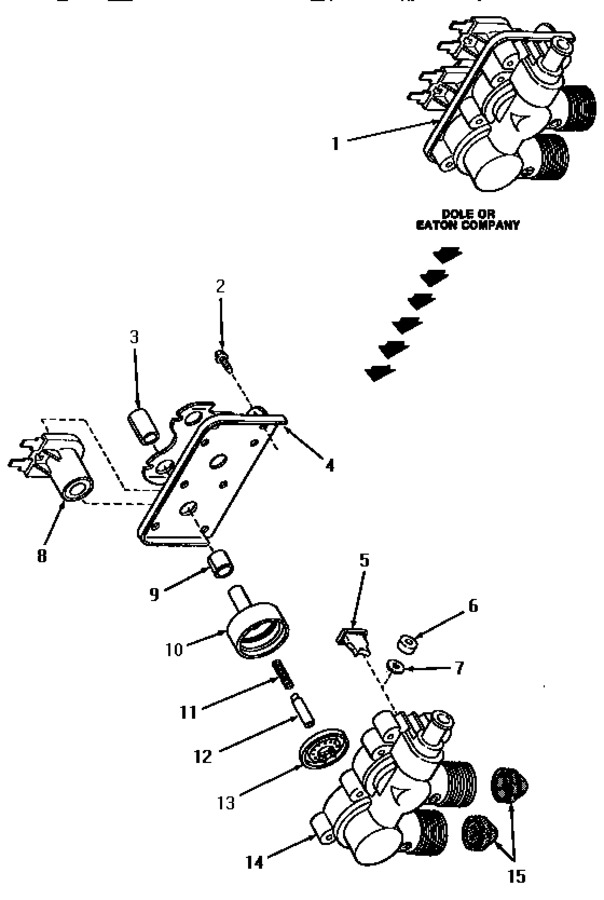

Diagram for VA2013
