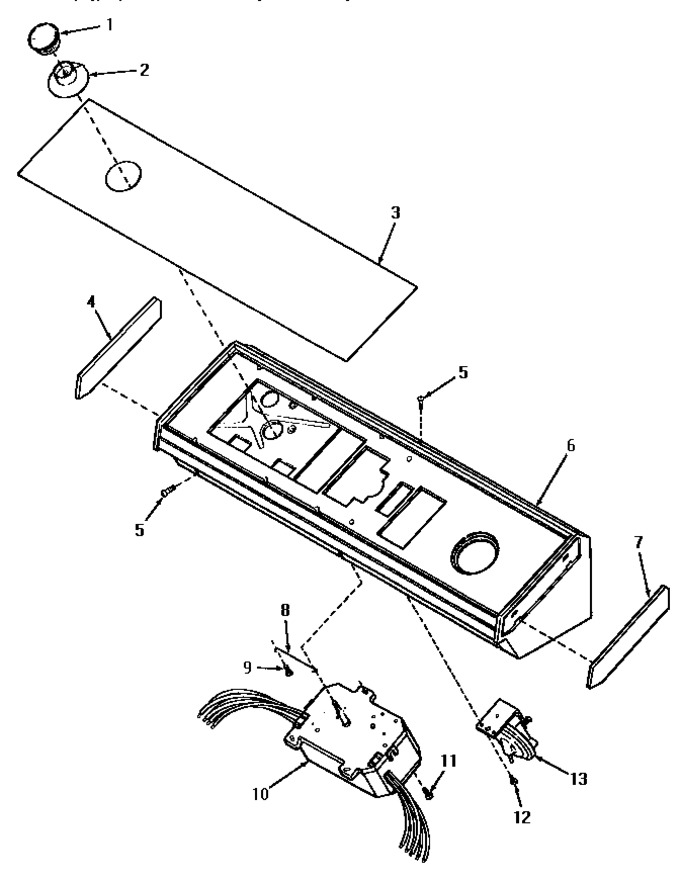

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	32253		Knob		Appelez-nous	-
2	32254		Indicator,dial		Appelez-nous	-
3	32446		No Longer Available		Appelez-nous	-
4	213995		Insert,l.h.   (Replaces: 32217)			Immediately	$ 363.34
5	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
6	32443		No Longer Available		Appelez-nous	-
7	32218		Insert,r.h.		Appelez-nous	-
8	14089		Clip,grounding		Appelez-nous	-
9	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
10	32041		Timer		Appelez-nous	-
11	21333		Screw		Appelez-nous	-
12	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
13	32140		Switch,pressure		Appelez-nous	-
	NOTE:		Note 3: Individual Wires Not Serviced Seperately. Order Complete Assemblies Ororder By The Foot.		Appelez-nous	-
