SELECT A DIAGRAM

01 - Blower Motor-convection Fan-lower


02 - Blower Motor-cooling Fan-lower


03 - Blower Motor-upper


04 - Body-liner/trim-lower Oven


05 - Body-liner/trim-lower Oven


06 - Body-liner/trim-upper & Lower Oven


07 - Body-liner/trim-upper Oven


08 - Control Panel-lower Oven


09 - Control Panel-upper Oven


10 - Door-lower Oven


11 - Door-upper Oven


12 - Internal Controls-lower


13 - Internal Controls-upper

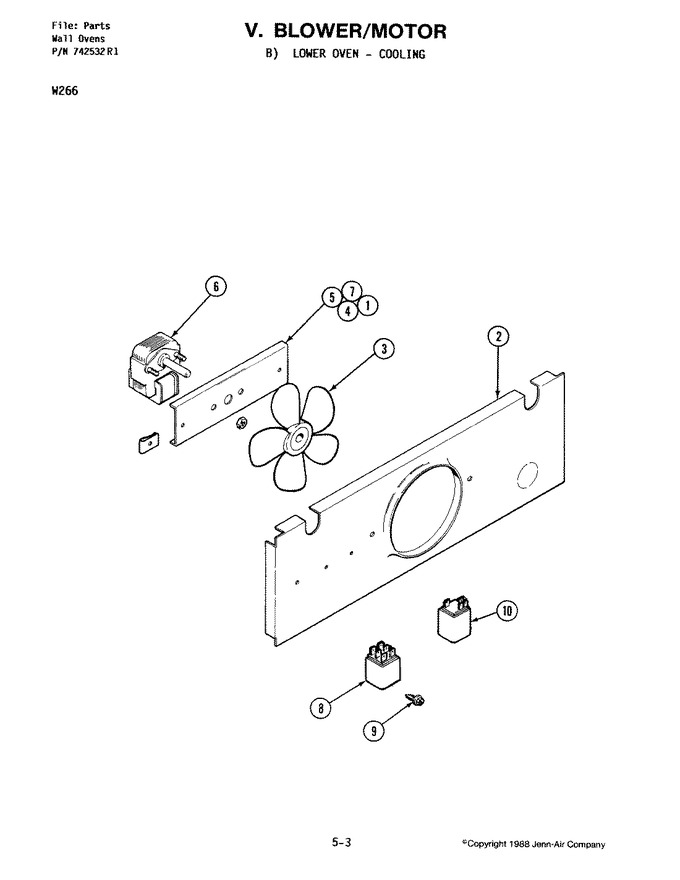

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: 715773)	1-3		Immediately	$ 7.04
2	704336		Plate, Motor	3	Appelez-nous	-
2	703095		Support, Top	1-2	Appelez-nous	-
3	701718		Blade, Fan	1-3	Appelez-nous	-
4	M0282005		Nut, Hex   (Replaces: 701719)	1-3			$ 7.07
5	Y704732		Mount, Motor	3	Appelez-nous	-
5	Y703570		Mount, Motor	1-2	Appelez-nous	-
6	Y701721		Motor, Fan	1-3	Appelez-nous	-
7	Y700556		Clip, J	1-3	Appelez-nous	-
8	704354		Switch, Bake Cycle	3	Appelez-nous	-
9	704335		Screw	3	Appelez-nous	-
10	703738		Harness, Wire	3	Appelez-nous	-
10	704355		Switch, Broil Cycle	3	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
