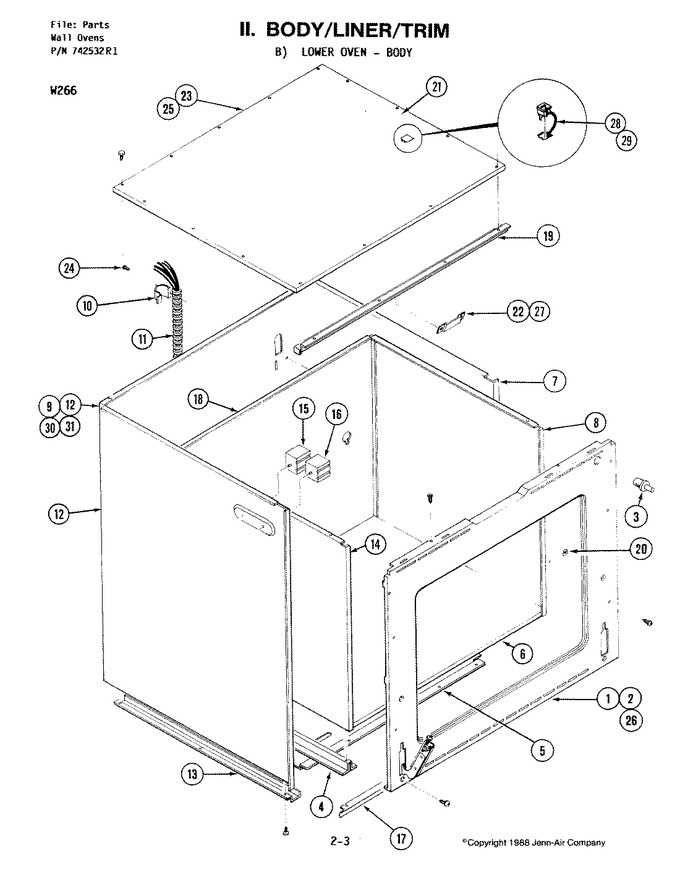

| 1 | 703609 | Closure, Front | 1-3 |
|
- | ||||
| 2 | WP3196183 | Screw (Replaces: Y701664) | 1-3 |
|
Immediately | $ 6.98 | |||
| 2 | Y703449 | Washer | 1-3 |
|
- | ||||
| 2 | Y703419 | Hinge | 1-3 |
|
- | ||||
| 3 | 701666 | Switch, Door | 1-3 |
|
- | ||||
| 4 | DE81-06547A | Support, Bottom (Replaces: 701667) | 1-3 |
|
$ 163.64 | ||||
| 5 | 701668 | Panel, Bottom (outer) | 1-3 |
|
- | ||||
| 6 | DE81-07471A | Panel, Bottom (Replaces: 701669) | 1-3 |
|
$ 320.80 | ||||
| 7 | 701672 | Panel, Outer (rt) | 1-3 |
|
- | ||||
| 8 | 701676 | Panel, Side (rt) | 1-3 |
|
- | ||||
| 9 | 701691 | Panel, Rear (outer) | 1-3 |
|
- | ||||
| 10 | DE81-08030A | Clamp, Conduit (Replaces: 701692) | 1-3 |
|
$ 131.01 | ||||
| 11 | 712180 | Cable, Wire | 1-2 |
|
- | ||||
| 11 | 704290 | Wire Cable As W266 | 3 |
|
- | ||||
| 12 | 701695 | Panel, Outer (lt) | 1-3 |
|
- | ||||
| 13 | 700596 | Rail, Bottom | 1-3 |
|
- | ||||
| 14 | DE81-09195A | Panel, Side (lt) (Replaces: 701697) | 1-3 |
|
$ 779.04 | ||||
| 15 | 701698 | Switch, Broil Cycle | 1 |
|
- | ||||
| 15 | 704355 | Switch, Broil Cycle | 2-3 |
|
- | ||||
| 15 | 703738 | Harness, Wire | 1-3 |
|
- | ||||
| 16 | 701699 | Switch, Bake Cycle | 1 |
|
- | ||||
| 16 | 704335 | Screw | 1-3 |
|
- | ||||
| 16 | 704354 | Switch, Bake Cycle | 2-3 |
|
- | ||||
| 17 | 704642 | Trim, Oven (lwr-blk) | 3 |
|
- | ||||
| 17 | 701848 | Trim, Oven (lower) | 1-2 |
|
- | ||||
| 18 | 701701 | Angle, Oven Support | 1-3 |
|
- | ||||
| 18 | 701700 | Panel, Back | 1-2 |
|
- | ||||
| 18 | 701703 | Insulation, Rear | 1-3 |
|
- | ||||
| 18 | 704808 | Panel, Rear | 3 |
|
- | ||||
| 18 | 701702 | Insulation, Wrap | 1-3 |
|
- | ||||
| 19 | 703095 | Support, Top | 1-3 |
|
- | ||||
| 20 | Y700556 | Clip, J | 1-3 |
|
- | ||||
| 21 | WP3196183 | Screw (Replaces: Y701664) | 1-3 |
|
Immediately | $ 6.98 | |||
| 22 | 701680 | Bracket, Vent Tube | 1-3 |
|
- | ||||
| 23 | 701681 | Top (outer) | 1-3 |
|
- | ||||
| 24 | WP7101P126-60 | Screw (Replaces: Y708310) | 1-3 |
|
Immediately | $ 6.85 | |||
| 25 | WP12990527 | Screw (Replaces: Y708955) | 1-3 |
|
Immediately | $ 7.15 | |||
| 26 | W11233072 | Screw (Replaces: Y708733) | 1-3 |
|
Immediately | $ 12.62 | |||
| 27 | WP90767 | Screw (Replaces: 715773) | 1-3 |
|
Immediately | $ 7.04 | |||
| 28 | 701704 | Outlet, Appliance | 1-3 |
|
- | ||||
| 29 | WP3400029 | Nut (Replaces: 712089) | 1-3 |
|
Immediately | $ 6.98 | |||
| 30 | 701716 | Cover, Motor | 1-3 |
|
- | ||||
| 31 | 715910 | Washer, Lock | 1-3 |
|
- |
