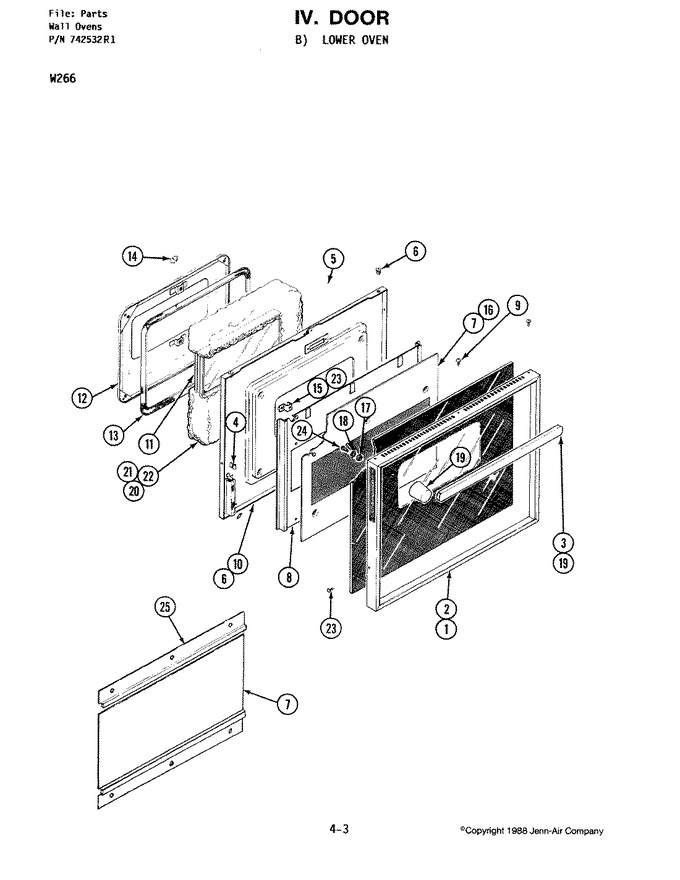

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (blk)   (Replaces: Y704237)	1		Immediately	$ 12.62
2	704318		Frame	1	Appelez-nous	-
3	Y704225		Handle	1	Appelez-nous	-
4	Y700834		Clip	1	Appelez-nous	-
5	704241		Glass, Door	1	Appelez-nous	-
6	702657		Nut, Push-in	1	Appelez-nous	-
7	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)	1			$ 54.82
8	712250		Baffle	1	Appelez-nous	-
9	WPY706189		Screw (blk)   (Replaces: Y704238)	1		Immediately	$ 6.47
10	712188		Liner, Door	1	Appelez-nous	-
10	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	1			$ 128.48
11	701648		Window Pack	1	Appelez-nous	-
12	712209		Plug, Upper	1	Appelez-nous	-
13	WP701650		Seal, Oven Door   (Replaces: 701650)	1			$ 184.62
14	Y700503		Clip, Retainer	1	Appelez-nous	-
15	701652		Bracket, Stand-off	1	Appelez-nous	-
16	Y704223		Bumper, Button	1	Appelez-nous	-
17	Y704230		Washer	1	Appelez-nous	-
18	Y700446		Washer	1			$ 5.27
19	Y704224		End Cap (blk)	1	Appelez-nous	-
20	701658		Insulation, Bottom	1	Appelez-nous	-
21	DE81-08905A		Insulation, Side   (Replaces: 701659)	1			$ 160.26
22	701660		Insulation, Top	1	Appelez-nous	-
23	WPY706189		Screw   (Replaces: 700906)	1		Immediately	$ 6.47
24	Y704231		Screw	1	Appelez-nous	-
