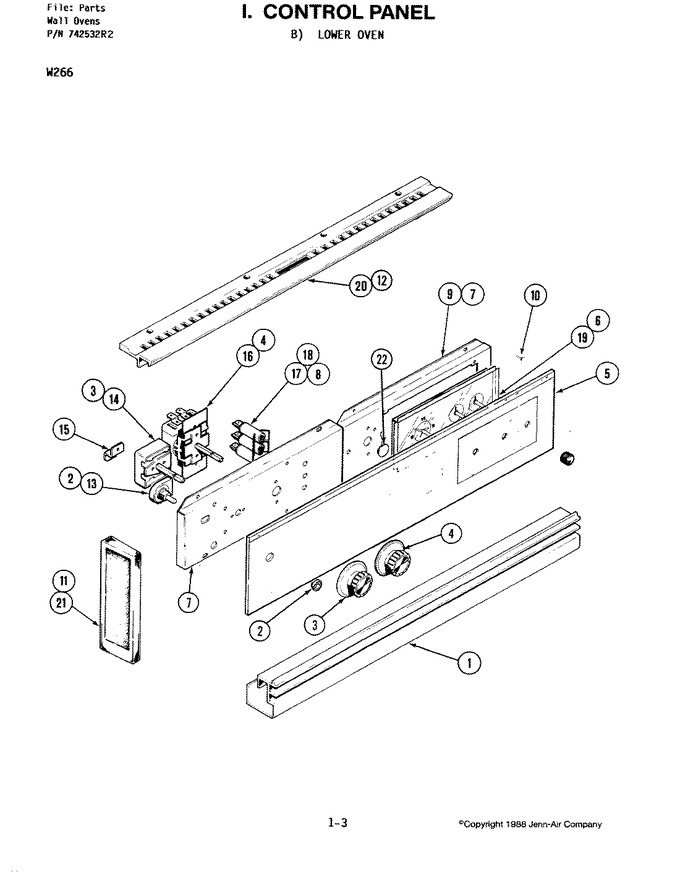

W266 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	704255	Extrusion, Bottom (blk)	1-3	Appelez-nous	-
2	704323	Bezel, Switch	1-3	Appelez-nous	-
3	703901	Knob, Selector Switch (blk)	1-3	Appelez-nous	-
4	703917	Knob, Thermostat	1-3			$ 21.34
5	704264	Glass, Control Panel	1-3	Appelez-nous	-
6	WP7711P492-60	Knob, Clock (blk) (Replaces: Y703910)	1-3			$ 12.13
7	705337	Panel, Control (lt)	1-3	Appelez-nous	-
8	Y700630	Lens, Indicator Lights	1-3			$ 4.18
9	705336	Panel, Control (rt)	1-3	Appelez-nous	-
10	705331	Pad, Spacer	1-3	Appelez-nous	-
11	704258	End Cap (rt-blk)	1-3	Appelez-nous	-
12	712066	Screw	1-3	Appelez-nous	-
13	700558	Switch, Light (push)	3	Appelez-nous	-
13	DE81-08481A	Switch, Push (Replaces: 701621)	1-2			$ 606.80
14	703077	Switch, Selector Upper	1-3	Appelez-nous	-
15	Y707664	Washer	1-3	Appelez-nous	-
15	WP12990527	Screw (Replaces: Y708955)	1-3		Immediately	$ 7.15
15	701609	Angle, Attachment	1-3	Appelez-nous	-
16	703080	Thermostat-upper	1-3	Appelez-nous	-
16	71002058	Screw (Replaces: Y702124)	1-3			$ 5.82
17	Y702394	Light, Indicator 240v	1-3	Appelez-nous	-
18	WP12990527	Screw (Replaces: Y708955)	1-3		Immediately	$ 7.15
18	Y702393	Light, Indicator-120v	1-3	Appelez-nous	-
19	704268	Clock	1-3	Appelez-nous	-
20	704256	Extrusion, Top	1-3	Appelez-nous	-
21	705040	Resistor, Lead	3	Appelez-nous	-
21	703089	Wire, Tan	1-3	Appelez-nous	-
21	DE81-04412A	Wire, Pink (Replaces: 703090)	1-3			$ 327.97
21	703889	Lead, Resistor Cwe601	1-2	Appelez-nous	-
21	704257	End Cap (lt-blk)	1-3	Appelez-nous	-
21	704289	Harness, Wire W266	1-3	Appelez-nous	-
21	DE81-09159A	Wire, Wire (Replaces: 703370)	1-3			$ 313.88
21	702746	Tie, Mount Cable	1-3	Appelez-nous	-
22	WPW10339879	Tie, Cable (Replaces: Y702105)	1-3			$ 7.11
22	702286	Plug, Hole	1-3	Appelez-nous	-
