Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 02030128 Bracket, Control Panel-upper 1 Appelez-nous -
2 02030137 Bracket, Control Panel-lower 1 Appelez-nous -
3 01210062 Board, Control 1 Appelez-nous -
4 02060256 Frame, Control Panel 1 Appelez-nous -
5 790119 Isrt-dr Frame, No Logo 1 Appelez-nous -
5 02100164 Insert, (m166) 1 Appelez-nous -
6 03020011 Screw 1 Appelez-nous -
7 Y03010147 Screw (top) 1 Appelez-nous -
8 03020041 Screw 1 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

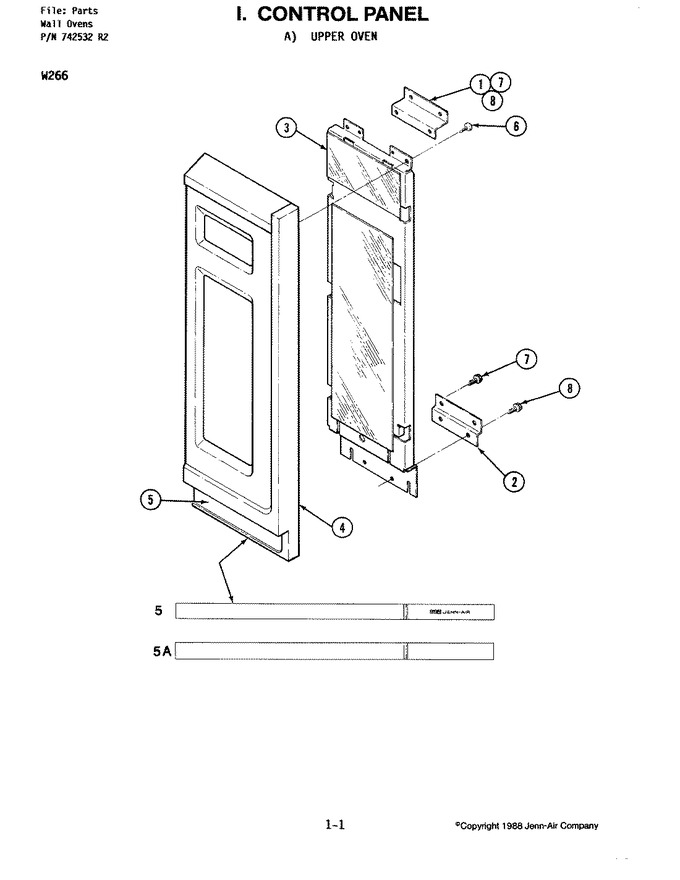

Diagram for W266
