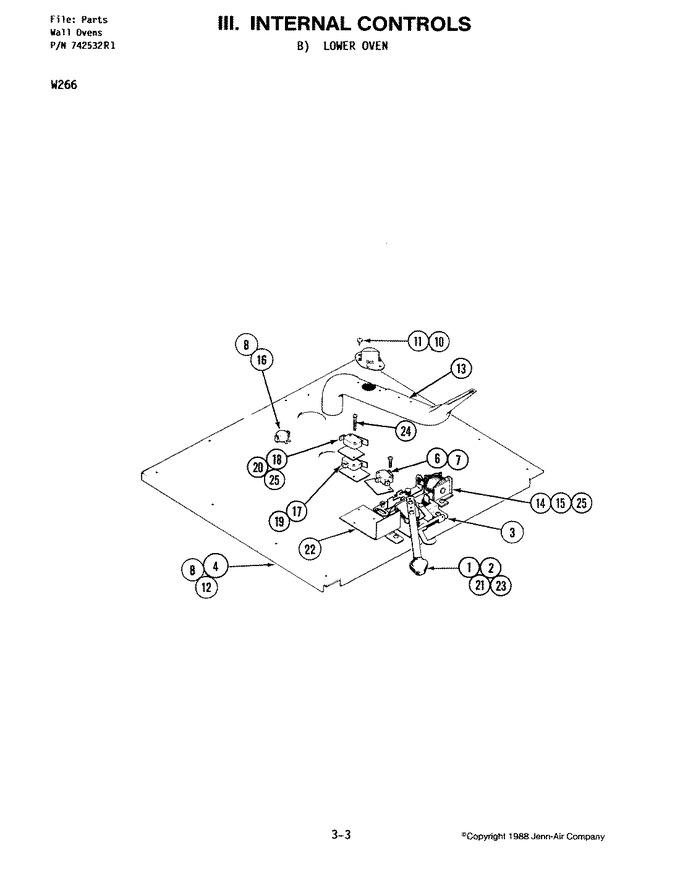

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y703932		Knob (blk)	1-3	Appelez-nous	-
2	701671		Spring, Knob	1-3	Appelez-nous	-
3	Y703357		Latch Assy.	1-3	Appelez-nous	-
3	WP12990527		Screw   (Replaces: Y708955)	1-3		Immediately	$ 7.15
4	704684		Panel, Top	3	Appelez-nous	-
4	704155		Panel-top	1-2	Appelez-nous	-
5	701677		Screw	1-3	Appelez-nous	-
6	Y702360		Switch, Solenoid	1-3	Appelez-nous	-
7	DE81-04441A		Screw   (Replaces: 702380)	1-3			$ 329.62
8	WP74004005		Screw   (Replaces: Y700929)	1-3			$ 6.95
9	701675		Ring, Retaining	1-3	Appelez-nous	-
10	Y702750		Limit, Fan	1-3	Appelez-nous	-
11	WP59002061		Screw   (Replaces: Y707172)	1-3			$ 6.98
12	701683		Bracket, Hat (rear)	1-3	Appelez-nous	-
13	704679		Tube, Vent	1-3	Appelez-nous	-
14	Y702526		Solenoid	1-3	Appelez-nous	-
15	Y701686		Pin, Cotter	1-3	Appelez-nous	-
16	701687		Thermostat	1-3	Appelez-nous	-
17	702805		Switch, Door	1-3	Appelez-nous	-
18	702806		Switch, Door	1-3	Appelez-nous	-
19	Y702350		Insulator	1-3	Appelez-nous	-
20	703264		Insulator	1-3	Appelez-nous	-
21	Y704240		Lever, Latch (blk)	1-3	Appelez-nous	-
22	701706		Shield, Switch	1-3	Appelez-nous	-
23	707407		Screw	1-3			$ 6.42
24	702807		Screw	1-3	Appelez-nous	-
25	703767		Wire, Gray	1-3	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
