SELECT A DIAGRAM

01 - Blower Motor-convection Fan-lower


02 - Blower Motor-cooling Fan-lower


03 - Blower Motor-upper


04 - Body-liner/trim-lower Oven


05 - Body-liner/trim-lower Oven


06 - Body-liner/trim-upper & Lower Oven


07 - Body-liner/trim-upper Oven


08 - Control Panel-lower Oven


09 - Control Panel-upper Oven


10 - Door-lower Oven

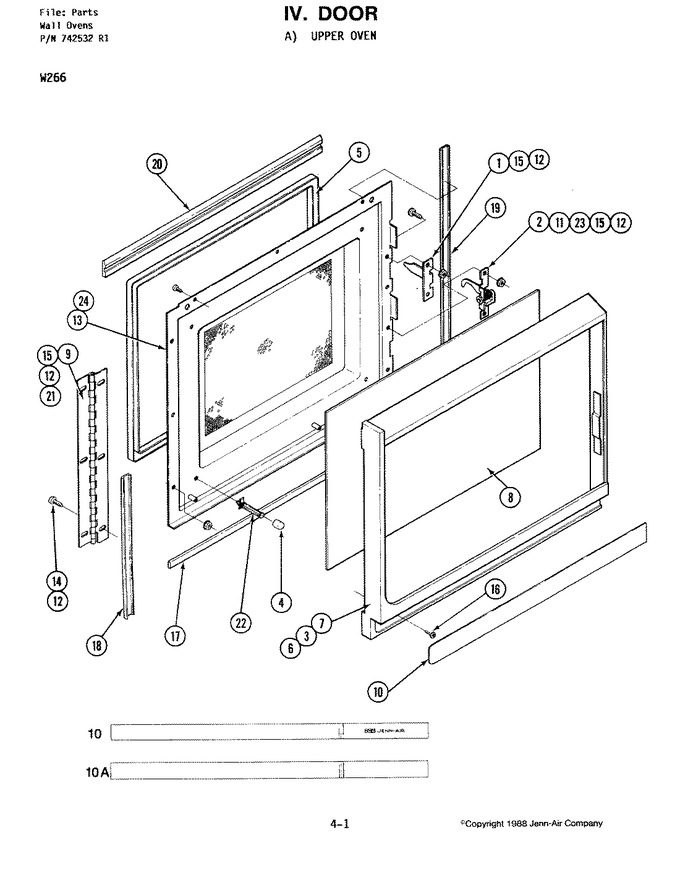

11 - Door-upper Oven


12 - Internal Controls-lower


13 - Internal Controls-upper


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y02030117		Activator, Monitor	1-2	Appelez-nous	-
2	Y02030116		Bracket, Door Latch	1-2	Appelez-nous	-
3	02010047		Bracket, Door Trim	1-2	Appelez-nous	-
4	Y02100135		Bumper	1-2	Appelez-nous	-
5	Y02100166		Choke, Filler (blk)	1-2	Appelez-nous	-
6	02120151		Extrusion, Handle (blk)	1-2	Appelez-nous	-
7	790116		Frame-door	1-2	Appelez-nous	-
8	Y02220096		Glass, Door	1-2	Appelez-nous	-
9	Y02200017		Hinge, Door	1-2	Appelez-nous	-
10	02100164		Insert, (m166)	1	Appelez-nous	-
10	790119		Isrt-dr Frame, No Logo	1-2	Appelez-nous	-
11	02190056		Latch, Door	1-2	Appelez-nous	-
12	Y02120121		Seal, Hinge Side	1-2	Appelez-nous	-
13	04021377		Panel, Inner Door (blk)	1-2	Appelez-nous	-
14	Y03010121		Screw	1-2	Appelez-nous	-
15	Y03020071		Screw & Washer (hi Lo)	1-2	Appelez-nous	-
16	Y03010118		Screw	1-2	Appelez-nous	-
17	02120114		Seal, Bottom	1-2	Appelez-nous	-
18	Y02120121		Seal, Hinge Side	1-2	Appelez-nous	-
19	Y02120122		Seal, Latch Side	1-2	Appelez-nous	-
20	02120153		Seal, Top	1-2	Appelez-nous	-
21	Y03120064		Shim	1-2	Appelez-nous	-
22	Y03120069		Spacer, Door Window	1-2	Appelez-nous	-
23	Y03180023		Spring, Door Latch	1-2	Appelez-nous	-
23	Y05080027K		+ Dble Tape 36``	1-2	Appelez-nous	-
24	Y02220073		Window, Polyester	1-2	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
