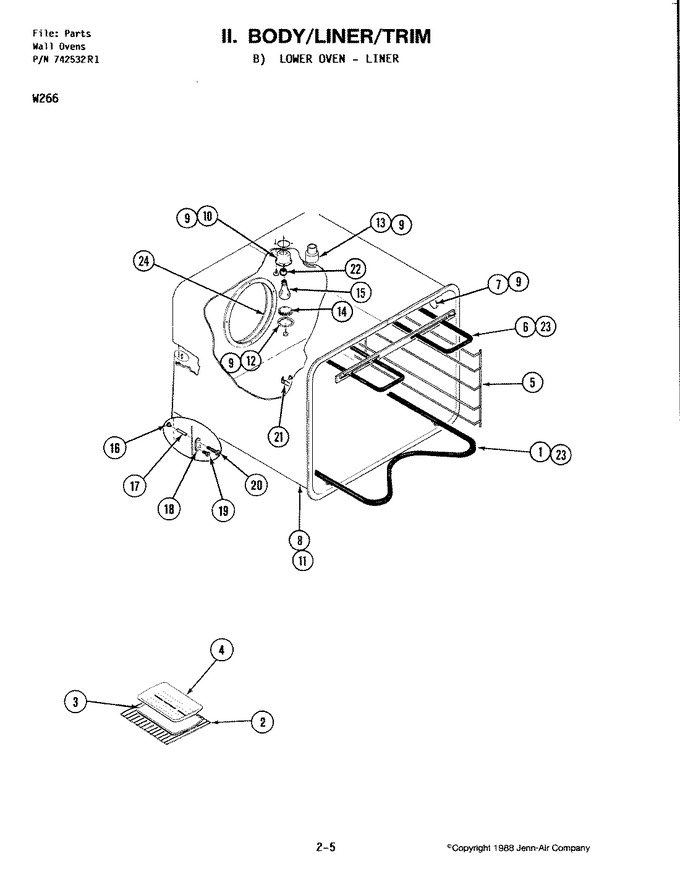

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y704665 | Element, Bake | 3 |
|
- | ||||
| 1 | WPY04100020 | Element, Bake 240v (Replaces: Y701724) | 1 |
|
Immediately | $ 136.96 | |||
| 2 | Y701725 | Rack, Oven | 1 |
|
- | ||||
| 2 | Y704661 | Rack, Oven | 3 |
|
- | ||||
| 3 | 4396923 | Pan, Broil (Replaces: 703164) | 1 |
|
Immediately | $ 52.04 | |||
| 4 | 4396923 | Insert, Broil Pan (Replaces: 703165) | 1 |
|
Immediately | $ 52.04 | |||
| 5 | Y701728 | Support, Rack | 1 |
|
- | ||||
| 6 | WPY04100514 | Element, Broil (Replaces: Y704667) | 3 |
|
$ 138.97 | ||||
| 6 | 701727 | Main Hrns | 1 |
|
- | ||||
| 7 | 712088 | Cover, Meat Probe | 1 |
|
- | ||||
| 8 | Y712377 | Weld, Oven | 1 |
|
- | ||||
| 9 | WP1163283 | Screw (Replaces: Y703741) | 1 |
|
$ 6.47 | ||||
| 10 | 704142 | Receptacle, Holder | 1 |
|
- | ||||
| 11 | Y702618 | Clip, Oven | 1 |
|
- | ||||
| 12 | Y704144 | Retainer, Lens | 1 |
|
- | ||||
| 13 | 701738 | Tube, Vent | 1 |
|
- | ||||
| 14 | Y704143 | Lens, Light | 1 |
|
- | ||||
| 15 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 1 |
|
Immediately | $ 16.80 | |||
| 16 | 715294 | Nut, Tee | 1 |
|
- | ||||
| 17 | 701741 | Spacer, Oven | 1 |
|
- | ||||
| 18 | 701742 | Plate, Grounding | 1 |
|
- | ||||
| 19 | WP71001171 | Screw (Replaces: Y712087) | 1 |
|
$ 6.26 | ||||
| 20 | 701744 | Screw | 1 |
|
- | ||||
| 21 | Y701541 | Clip, Bulb | 1 |
|
- | ||||
| 22 | Y704145 | Receptacle, Snap-in | 1 |
|
- | ||||
| 23 | Y705342 | Cover, Sensor Hole | 3 |
|
- | ||||
| 23 | WPW10253196 | Screw (Replaces: Y707113) | 3 |
|
$ 3.76 | ||||
| 23 | WP179051 | Screw (Replaces: 708764) | 1 |
|
Immediately | $ 7.16 | |||
| 24 | DE81-03744A | Plate, Convection Back (Replaces: 701712) | 3 |
|
$ 312.62 | ||||
| 24 | Y704663 | Rack, Oven (offset) | 3 |
|
- |
