E42BS75EPS | TransGlobal : Appliance Model Lookup

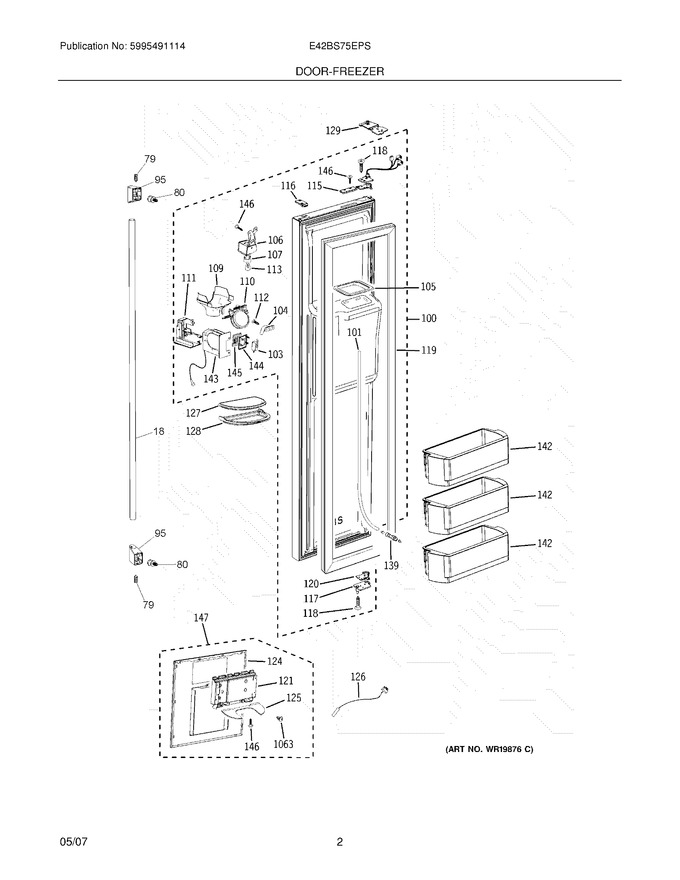

Diagram #	Part Number	Description	Availability	Ships	Price
18	241637810	Handle,stainless	Appelez-nous	-
79	218755401	Screw-set,10-32 X 0.375		Immediately	$ 25.02
80	218755504	Screw-shoulder,no.10 Ab ,handle Mounting (Replaces: 218755503)		Immediately	$ 18.60
95	241637702	End Cap,handle Trim ,chrome	Appelez-nous	-
100	5304448838	Door-frzr, Complete			$ 1,294.81
101	5304448839	Tube,water ,door	Appelez-nous	-
103	5304448840	Switch-micro	Appelez-nous	-
104	5304448842	Cap	Appelez-nous	-
105	5304448843	Trim-disp Chute	Appelez-nous	-
106	5304448844	Bracket-light Socket	Appelez-nous	-
107	5304448845	Socket-light	Appelez-nous	-
109	5304448846	Chute-ice	Appelez-nous	-
110	5304448847	Door Assy-ice Chute,w/gasket,insul	Appelez-nous	-
111	5304448848	Bracket	Appelez-nous	-
112	5304448850	Screw	Appelez-nous	-
113	5304448851	Light Bulb	Appelez-nous	-
115	5304448852	Strike-door	Appelez-nous	-
116	5304448853	Door Stop	Appelez-nous	-
117	5304448854	Bracket-lower Hinge			$ 323.95
118	5304448855	Screw			$ 17.90
119	5304448856	Gasket-frzr Door,magnetic	Appelez-nous	-
120	5304448857	Shim	Appelez-nous	-
121	5304448858	Control,dispenser			$ 1,398.18
124	5304448859	Cover-module,stainless	Appelez-nous	-
125	5304448860	Shield,light	Appelez-nous	-
126	5304448861	Thermistor			$ 331.08
127	5304448863	Drip Tray Insert			$ 93.08
128	5304448862	Drip Tray,stainless			$ 175.41
129	5304448864	Bracket-upper Hinge			$ 301.40
139	5304448865	Connector-water,straight	Appelez-nous	-
142	5304448866	Bin-door	Appelez-nous	-
143	5304448867	Motor,dispenser ,w/cam	Appelez-nous	-
144	5304448868	Trim	Appelez-nous	-
145	5304448869	Actuator	Appelez-nous	-
146	5304448870	Screw,tapping	Appelez-nous	-
147	5304448871	Cover,dispenser			$ 1,089.32
1063	5304448872	Screw,tapping	Appelez-nous	-
NI	241601001	Wrench,allen	Appelez-nous	-
