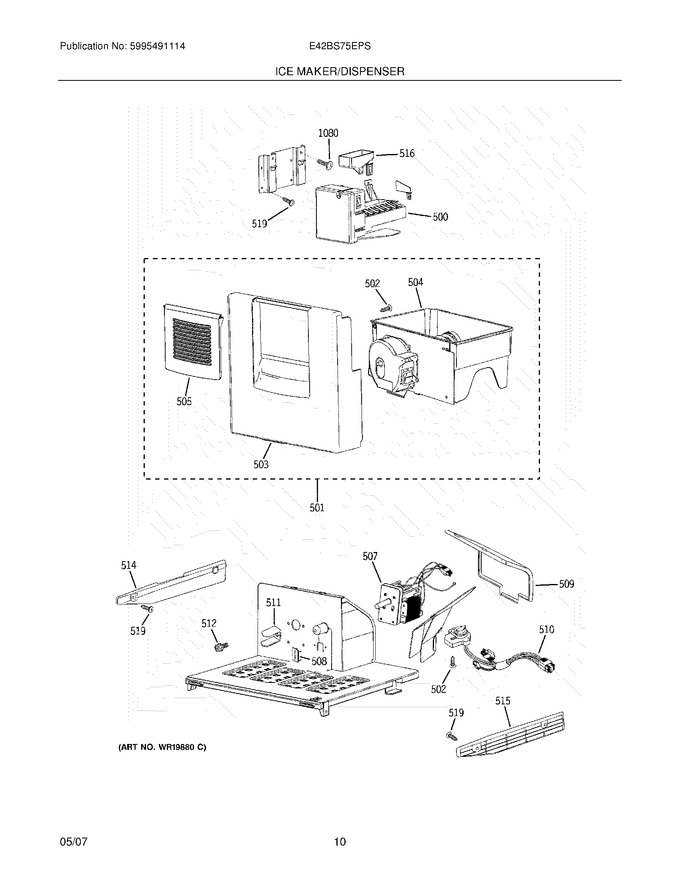

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 500 | 5304448963 | Ice Maker,complete ,115 V |
|
- | |||||
| 501 | 5304448964 | Ice Container Assy,complete Assy |
|
- | |||||
| 502 | 5304448965 | Screw,tapping |
|
- | |||||
| 503 | 5304448966 | Cover-ice Container,front |
|
- | |||||
| 504 | 5304448967 | Ice Bucket Assy |
|
- | |||||
| 505 | 5304448968 | Door-ice Container |
|
- | |||||
| 508 | 5304448970 | Cover |
|
- | |||||
| 509 | 5304448971 | Cover,auger Motor |
|
- | |||||
| 511 | 5304448973 | Bar-drive |
|
- | |||||
| 512 | 5304448974 | Screw |
|
- | |||||
| 514 | 5304448975 | Rail-auger Bucket,lh |
|
- | |||||
| 515 | 5304448976 | Rail-auger Bucket,rh |
|
- | |||||
| 516 | 5304448977 | Cup-water Inlet |
|
- | |||||
| 519 | 5304448956 | Screw,tapping |
|
- | |||||
| 1080 | 5304448978 | Screw,tapping |
|
- | |||||
| F507 | 5304448969 | Motor-auger |
|
$ 553.57 | |||||
| F510 | 5304448972 | Motor,w/switch Assy |
|
- |
