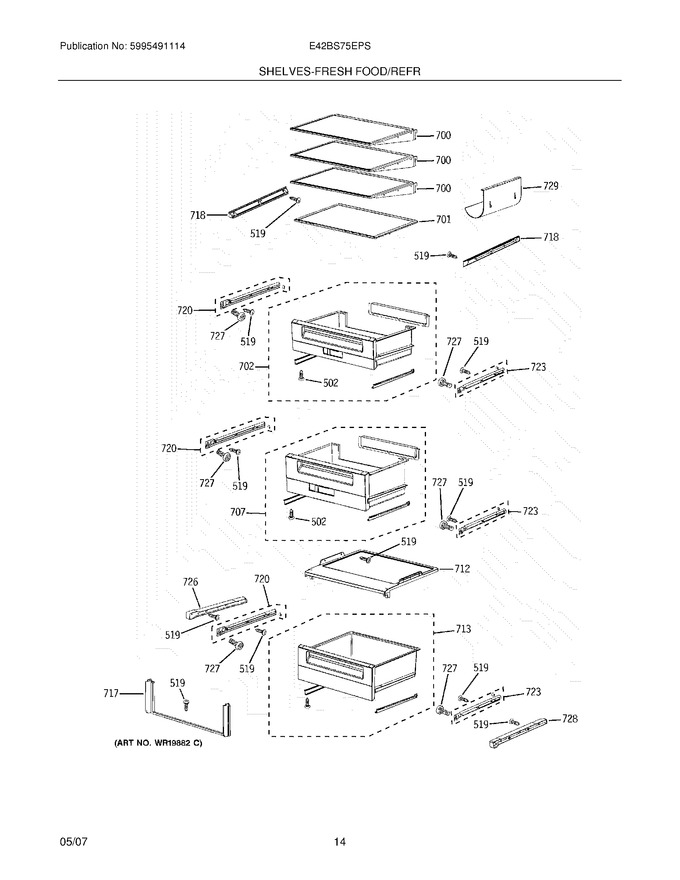

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
502	5304448965		Screw,tapping		Appelez-nous	-
519	5304448956		Screw,tapping		Appelez-nous	-
700	5304449001		Shelf-cantilever,refr ,(3)				$ 435.82
701	5304449002		Shelf,spill-safe ,lower		Appelez-nous	-
702	5304449003		Pan-crisper,upper				$ 481.75
707	5304449004		Pan-crisper,middle		Appelez-nous	-
712	5304449005		Cover-crisper Pan,lower		Appelez-nous	-
713	5304449006		Pan-crisper,lower		Appelez-nous	-
717	5304449007		Support,lwr Crisper Pan		Appelez-nous	-
718	5304449008		Hanger-shelf,lower		Appelez-nous	-
720	5304449009		Hanger-basket,lh		Appelez-nous	-
723	5304449010		Hanger-basket,rh		Appelez-nous	-
726	5304449011		Support-rail,lh		Appelez-nous	-
727	5304449012		Roller,crisper Pan ,(6)				$ 138.56
728	5304449013		Support-rail,rh		Appelez-nous	-
729	5304449014		Rack-wine		Appelez-nous	-
