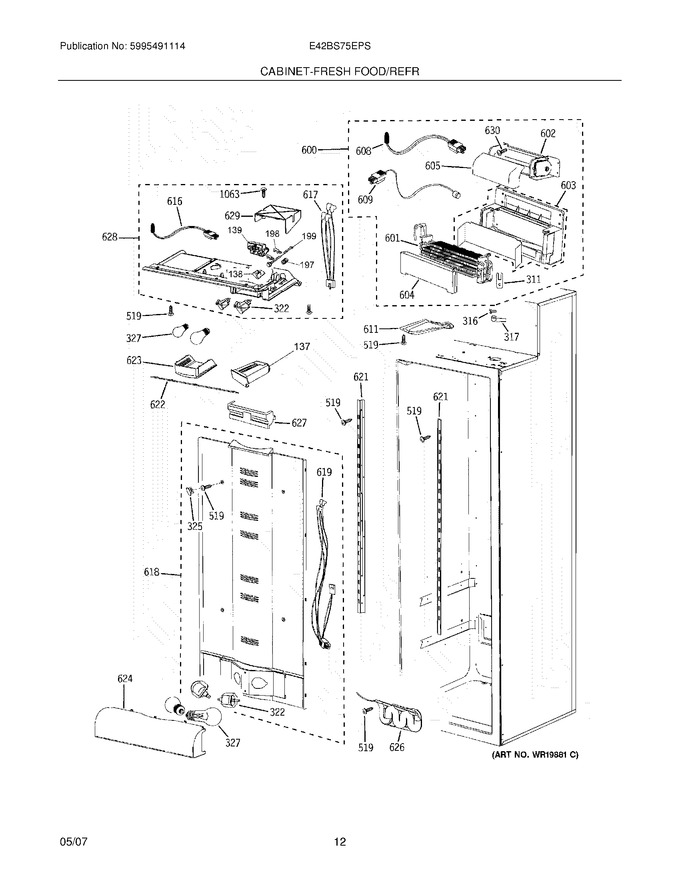

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 138 | 240397301 | Button-filter Release |
|
$ 91.76 | |||||
| 139 | 240396002 | Base-water Filter |
|
Immediately | $ 119.66 | ||||
| 197 | 240398401 | Spring-filter Release Rod |
|
$ 59.16 | |||||
| 198 | 240397401 | Retainer |
|
$ 59.54 | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 311 | 5304448940 | Bracket-thermostat Mtg |
|
- | |||||
| 316 | 5304448944 | Clamp-hose |
|
- | |||||
| 317 | 5304448945 | Drain Tube |
|
- | |||||
| 322 | 5304448950 | Socket-light |
|
- | |||||
| 325 | 5304448953 | Cap-screw |
|
- | |||||
| 327 | 5304448955 | Bulb-light,40w ,115v |
|
- | |||||
| 519 | 5304448956 | Screw,tapping |
|
- | |||||
| 600 | 5304448979 | Evaporator Assy,refr |
|
$ 965.58 | |||||
| 601 | 5304448980 | Evaporator,w/defr Heater |
|
$ 570.88 | |||||
| 602 | 5304448981 | Motor-evap Fan |
|
$ 784.98 | |||||
| 603 | 5304448982 | Housing-evaporator,rear |
|
$ 423.78 | |||||
| 604 | 5304448983 | Housing-evaporator,front |
|
$ 390.39 | |||||
| 605 | 5304448984 | Insulation |
|
- | |||||
| 608 | 5304448985 | Thermistor-refr,evap |
|
$ 303.45 | |||||
| 609 | 5304448986 | Thermostat-defrost,refr |
|
$ 323.66 | |||||
| 611 | 5304448987 | Trough-drain,ref |
|
$ 251.79 | |||||
| 616 | 5304448988 | Thermistor-refr |
|
$ 371.65 | |||||
| 617 | 5304448989 | Harness-wiring,lights, Upper |
|
- | |||||
| 618 | 5304448990 | Cover-air Duct |
|
- | |||||
| 619 | 5304448991 | Harness-wiring,lights, Lower ,ref |
|
- | |||||
| 621 | 5304448992 | Channel-shelf Mtg,side ,(2) |
|
- | |||||
| 622 | 5304448993 | Cover,grille |
|
- | |||||
| 623 | 5304448994 | Shield-light,upper |
|
- | |||||
| 624 | 5304448995 | Shield-light,lower |
|
- | |||||
| 626 | 5304448996 | Water Tank |
|
$ 444.99 | |||||
| 627 | 5304448997 | Cover-air Duct,upper |
|
- | |||||
| 628 | 5304448998 | Housing,upr Light Assy |
|
$ 679.93 | |||||
| 629 | 5304448999 | Cover-water Filter |
|
- | |||||
| 630 | 5304449000 | Screw,tapping |
|
- | |||||
| 1063 | 5304448872 | Screw,tapping |
|
- | |||||
| F137 | 242227702 | Bypass,water Filter ,optional Part (Replaces: 240396701) |
|
Immediately | $ 73.16 | ||||
| F137 | EWF2CBPA | Filter,water ,carbon Cassette ,front ,with O`rings (Replaces: 240396405) |
|
Immediately | $ 115.61 | ||||
| F139 | 240527001 | O-ring,wtr Filter Base (Replaces: 240526901) |
|
$ 10.62 |
