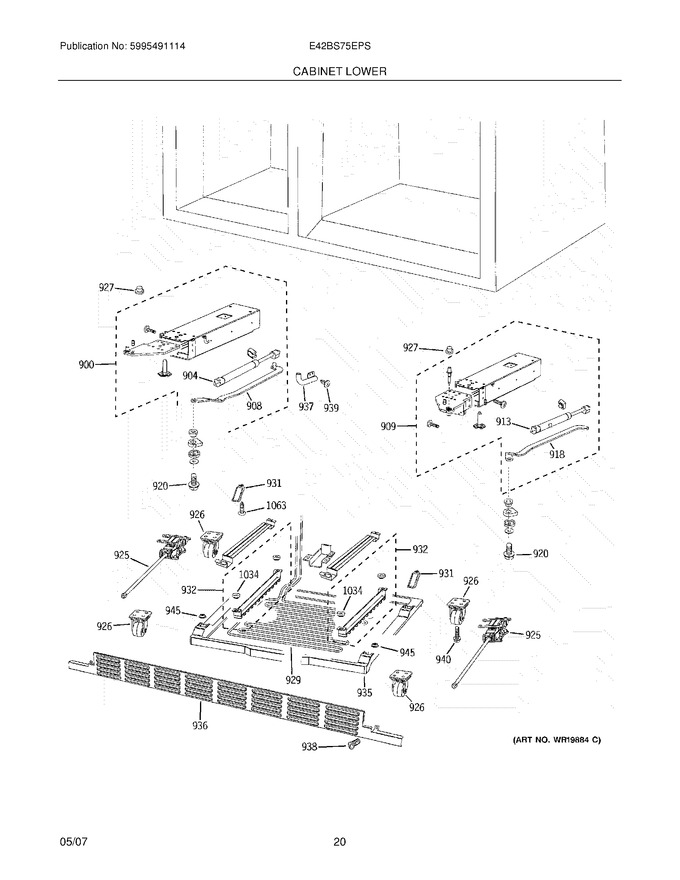

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
900	5304449049		Hinge Assembly,lower Lh ,complete		Appelez-nous	-
904	5304449050		Shock Absorber,lh				$ 571.22
908	5304449052		Link-hinge Arm,lh		Appelez-nous	-
909	5304449054		Hinge Assembly,lower Rh ,complete				$ 600.21
913	5304449051		Shock Absorber,rh				$ 492.12
918	5304449053		Link-hinge Arm,rh		Appelez-nous	-
920	5304449055		Fastener Kit,hinge Assembly				$ 147.54
925	5304449056		Leveling Jack,rear		Appelez-nous	-
926	5304449057		Roller,fixed		Appelez-nous	-
927	5304449058		Pin-hinge				$ 41.41
929	5304449059		Condenser,lower		Appelez-nous	-
931	5304449060		Support,drain Pan ,rear		Appelez-nous	-
932	5304449061		Support,condenser Assy ,lower		Appelez-nous	-
935	5304449062		Pan-drain,condenser ,lower				$ 335.87
936	5304449063		Grille/kickplate				$ 481.35
937	5304449064		Cover,water Tube		Appelez-nous	-
938	5304449065		Screw				$ 22.99
939	5304449048		Screw,tapping				$ 7.74
940	5304449066		Bolt,10 Mm		Appelez-nous	-
945	5304449067		Support,drain Pan ,front		Appelez-nous	-
1034	5304449068		Grommet,condenser		Appelez-nous	-
1063	5304448872		Screw,tapping		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
