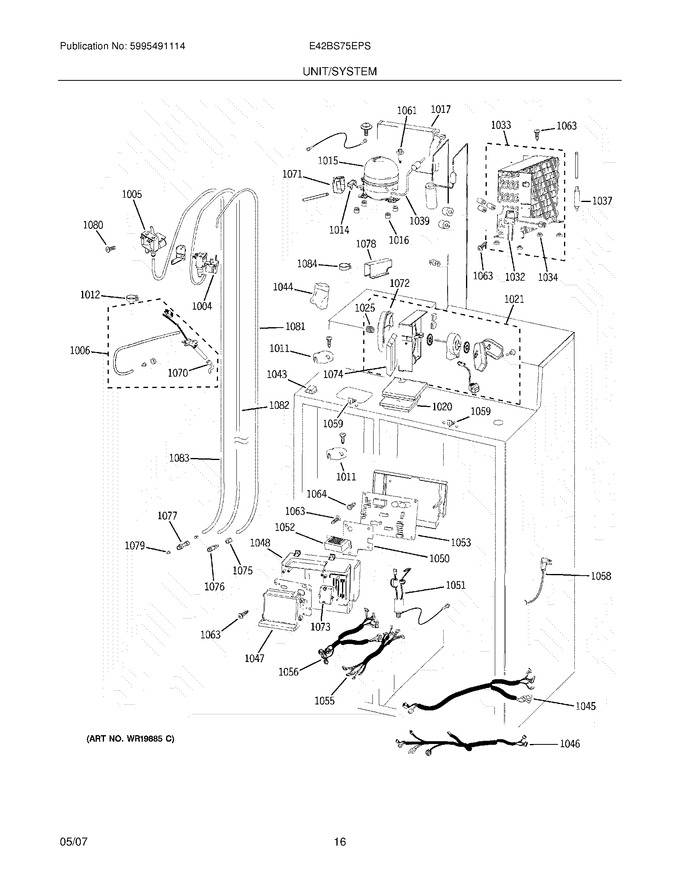

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1004	5304449069		Valve,water ,115 V				$ 395.77
1005	5304449070		Valve,water ,115 V				$ 281.45
1006	5304449071		Tube-fill,water		Appelez-nous	-
1011	5304449072		Cover,fill Tube		Appelez-nous	-
1012	5304449073		Clamp		Appelez-nous	-
1014	5304449074		Overload Protector		Appelez-nous	-
1015	5304449075		Compressor				$ 981.34
1016	5304449076		Grommet-compressor		Appelez-nous	-
1017	5304449077		Heat Exchanger		Appelez-nous	-
1020	5304449078		Block,foam Insulator		Appelez-nous	-
1021	5304449079		Condenser Fan Aassembly				$ 600.90
1025	5304449080		Spring,retaining ,fan		Appelez-nous	-
1032	5304449081		Valve,3 Way				$ 609.03
1033	5304449082		Condenser Assembly		Appelez-nous	-
1034	5304449068		Grommet,condenser		Appelez-nous	-
1037	5304449083		Drier-filter		Appelez-nous	-
1039	5304449084		Tube,suction		Appelez-nous	-
1043	5304449085		Connector,quick		Appelez-nous	-
1045	5304449086		Harness-wiring,ac				$ 379.50
1046	5304449087		Harness-wiring,dc				$ 461.30
1047	5304449088		Cover-housing		Appelez-nous	-
1048	5304449089		Cover,pcb Panel		Appelez-nous	-
1050	5304449090		Cover,noise Filter		Appelez-nous	-
1051	5304449091		Filter,coil Choke Emi				$ 320.00
1052	5304449092		Filter,coil Reactor				$ 236.72
1053	5304449093		Board-main,pcb				$ 809.29
1055	5304449094		Harness-wiring,ac				$ 411.57
1056	5304449095		Harness-wiring,dc				$ 375.31
1058	5304449096		Cord-power		Appelez-nous	-
1059	5304449097		Bracket,access Cover		Appelez-nous	-
1061	5304449098		Bolt,shoulder		Appelez-nous	-
1063	5304448872		Screw,tapping		Appelez-nous	-
1064	5304449099		Screw,tapping		Appelez-nous	-
1070	5304449100		Extension-fill Tube		Appelez-nous	-
1071	5304449101		Cover,terminal ,compressor Elec		Appelez-nous	-
1072	5304449102		Blade,condenser Fan		Appelez-nous	-
1073	5304449103		Cover,noise Filter		Appelez-nous	-
1074	5304449104		Seal,partition		Appelez-nous	-
1075	5304449105		Nut,water Valve		Appelez-nous	-
1076	5304449106		Valve,push On Fitting				$ 166.63
1077	5304449107		Connector-water,straight				$ 191.57
1078	5304449108		Cover,water Tube		Appelez-nous	-
1079	5304449109		Valve,fixer Water		Appelez-nous	-
1080	5304448978		Screw,tapping		Appelez-nous	-
1081	5304449110		Tube,water Line ,1/4`` ,blue				$ 290.08
1082	5304449111		Tube,water Line ,5/16`` ,blue				$ 306.14
1083	5304449112		Tube,water Line ,1/4`` ,white		Appelez-nous	-
1084	5304449113		Clamp		Appelez-nous	-
