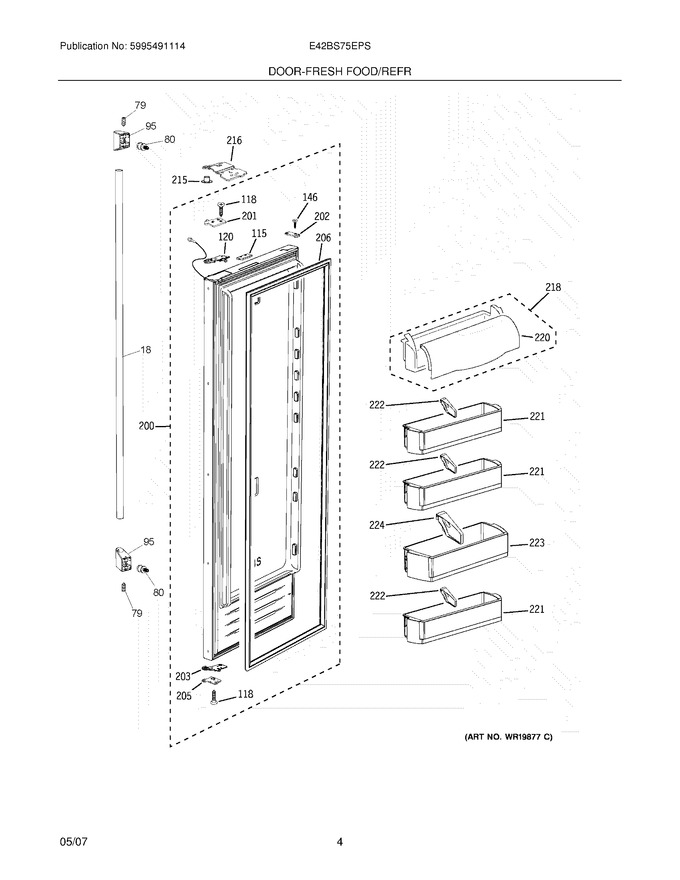

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	241637810		Handle,stainless		Appelez-nous	-
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755503)			Immediately	$ 18.60
95	241637702		End Cap,handle Trim ,chrome		Appelez-nous	-
115	5304448852		Strike-door		Appelez-nous	-
118	5304448855		Screw				$ 17.90
120	5304448857		Shim		Appelez-nous	-
146	5304448870		Screw,tapping		Appelez-nous	-
200	5304448912		Door-refr,stainless Steel ,complete Assy				$ 1,615.06
201	5304448913		Bracket-upper Hinge		Appelez-nous	-
202	5304448914		Door Stop		Appelez-nous	-
203	5304448916		Shim				$ 47.13
205	5304448917		Bracket-lower Hinge		Appelez-nous	-
206	5304448919		Gasket,refr Door Seal ,magnetic				$ 657.29
215	5304448926		Pin-hinge				$ 53.27
216	5304448924		Bracket-upper Hinge				$ 290.88
218	5304448925		Compartment-dairy,removable		Appelez-nous	-
220	5304448927		Door-dairy				$ 289.43
221	5304448928		Bin-door				$ 268.58
222	5304448929		Snugger,paddle Type ,small		Appelez-nous	-
223	5304448930		Bin-door,gallon				$ 411.02
224	5304448931		Snugger-door Bin,``paddle Type`` ,large		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
