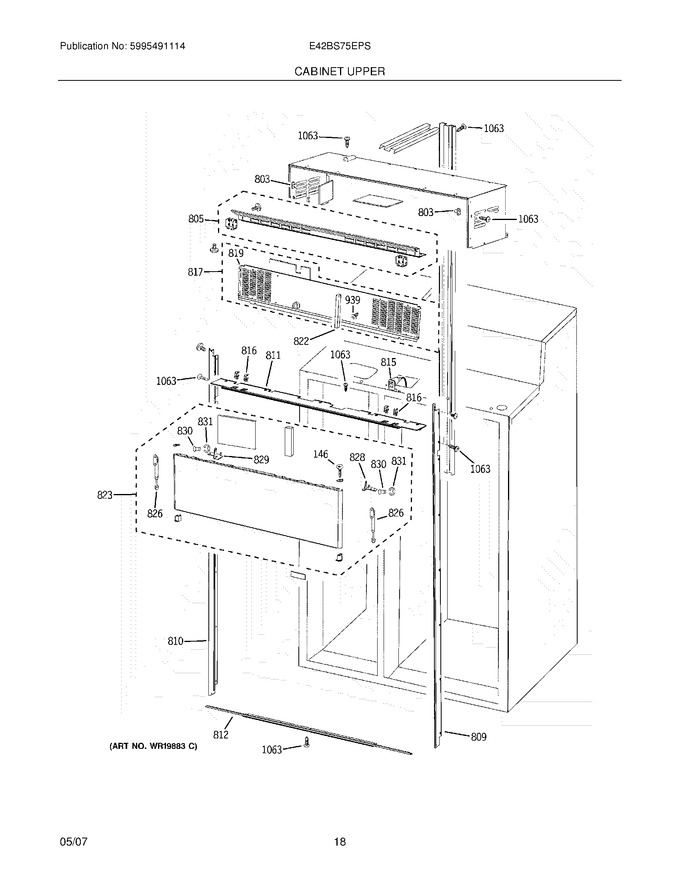

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
146	5304448870		Screw,tapping		Appelez-nous	-
803	5304449015		Shock Post				$ 29.44
805	5304449016		Trim Frame,upper		Appelez-nous	-
809	5304449017		Trim Frame,rh		Appelez-nous	-
810	5304449018		Trim Frame,lh		Appelez-nous	-
811	5304449036		Trim Frame,light Switches		Appelez-nous	-
812	5304449037		Trim Frame,bottom		Appelez-nous	-
815	5304449038		Switch Assembly,main		Appelez-nous	-
816	5304449039		Switch Assembly,door		Appelez-nous	-
817	5304449040		Cover Assy,access ,inner		Appelez-nous	-
822	5304449041		Seal,foam		Appelez-nous	-
823	5304449042		Grille Assy,outer Cover				$ 911.27
826	5304449043		Shock Absorber,gas				$ 374.22
828	5304449044		Hinge,rh ,access Cover				$ 107.50
829	5304449045		Hinge,lh ,access Cover				$ 106.04
830	5304449046		Pin-hinge,access Grille				$ 150.33
831	5304449047		E-ring,(2)		Appelez-nous	-
939	5304449048		Screw,tapping				$ 7.74
1063	5304448872		Screw,tapping		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
