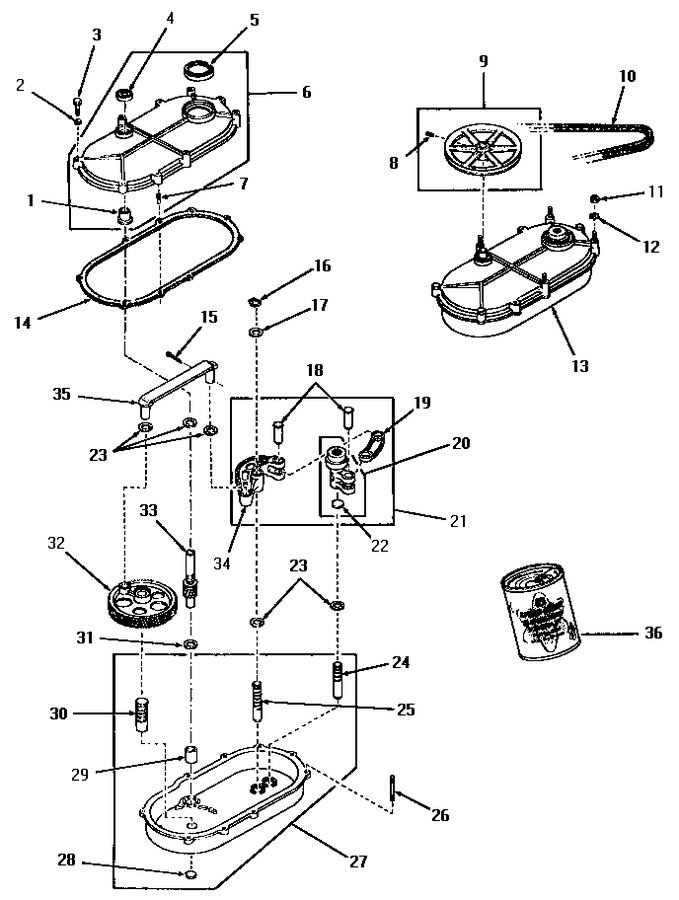

01 - 10502 Transmission Assy


02 - Agitator, Wash Tub And Agitator Post


03 - Cabinet


04 - Cabinet Top And Loading Doors


05 - Control Housing And Controls


06 - Motor And Pump Assy And Hoses


07 - Power Cord, Inlet Hose And Clothes Tongs


08 - Spin Tub And Motor


09 - Wash Motor And Frame


10 - Wire Harness, Wire And Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	FB-RFB200		Bearing				$ 784.86
2	03189		Lockwasher,1/4 Std-c P		Appelez-nous	-
3	20257		Screw,1/4-20 X 1-1/4 H		Appelez-nous	-
4	20200		Seal		Appelez-nous	-
5	20199		Seal				$ 8.04
6	20216		Assy,transmission Cove		Appelez-nous	-
7	20197		Dowel Pin		Appelez-nous	-
8	52906		Setscrew		Appelez-nous	-
9	10504		Transmission Pulley				$ 7.93
10	Y10524		Belt Xreplace		Appelez-nous	-
11	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
12	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
13	10502		Transmission Xreplace				$ 100.46
14	20059		Gasket				$ 6.99
15	02578		Pin,cotter		Appelez-nous	-
16	23751		Ring,retaining		Appelez-nous	-
17	20212		Washer,.626idx1.00odx.		Appelez-nous	-
18	01690		Pin,link		Appelez-nous	-
19	01684		Xreplace		Appelez-nous	-
20	10499		Drive Clutch Assembly		Appelez-nous	-
21	10488		Arc-cuate			Immediately	$ 18.53
22	Y02479		Disc,expansion		Appelez-nous	-
23	01791		Washer,.626 X 1.125 X1		Appelez-nous	-
24	01688		Pin		Appelez-nous	-
25	24817		Pin,rocker Arm		Appelez-nous	-
26	Y10402		Mounting Stud		Appelez-nous	-
27	23927		Assy,transmission Xreplace		Appelez-nous	-
28	Y02769		Disc		Appelez-nous	-
29	01993		Bearing,7/8odx5/8id				$ 3.85
30	03477		Pin		Appelez-nous	-
31	20198		Washer,.626idx1.250odx		Appelez-nous	-
32	02175		Gear,crank		Appelez-nous	-
33	23645		Pinion		Appelez-nous	-
34	01683		Arm,rocker Xreplace				$ 16.91
35	03969		Rod,connecting		Appelez-nous	-
36	02528		Transmission Lubricant		Appelez-nous	-
