SELECT A DIAGRAM

01 - 10502 Transmission Assy


02 - Agitator, Wash Tub And Agitator Post


03 - Cabinet


04 - Cabinet Top And Loading Doors

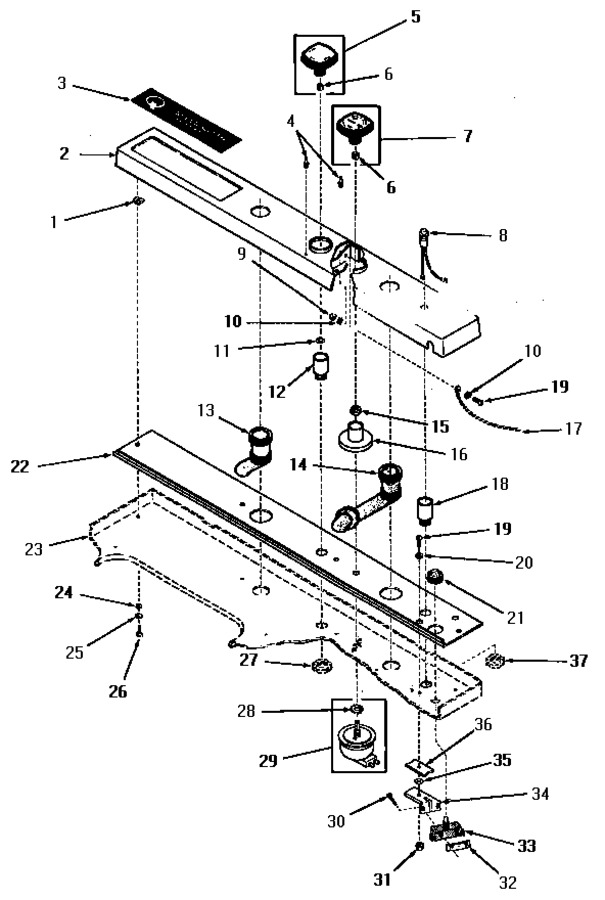

05 - Control Housing And Controls


06 - Motor And Pump Assy And Hoses


07 - Power Cord, Inlet Hose And Clothes Tongs


08 - Spin Tub And Motor


09 - Wash Motor And Frame


10 - Wire Harness, Wire And Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y10009		Nut,speed Xreplace		Appelez-nous	-
2	10492A		Control Housing, Avocado		Appelez-nous	-
2	10492H		Control Housing, Harvest Gold		Appelez-nous	-
2	10492C		Control Housing, Coppertone		Appelez-nous	-
2	10492W		Control Housing, White		Appelez-nous	-
3	10161AB		Nameplate   (Replaces: 10161)				$ 68.06
4	10160		Rivet		Appelez-nous	-
5	Y10567		Control Knob		Appelez-nous	-
6	10519		Retainer		Appelez-nous	-
7	10568		Knob, Timer		Appelez-nous	-
8	10159		Indicator Light		Appelez-nous	-
9	03673		Nut		Appelez-nous	-
10	03815		Lockwasher,no.10 Ext Shk				$ 3.34
11	10150		Retainer Ring				$ 6.42
12	10148		Collar		Appelez-nous	-
13	Y10560		Water Inlet		Appelez-nous	-
14	10559		Code R		Appelez-nous	-
15	10338		Nut,hex 3/8-24				$ 29.92
16	10151		Shield			Immediately	$ 46.33
17	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
18	10154		Collar		Appelez-nous	-
19	03814		Screw,10-24 X 1/2 Roun		Appelez-nous	-
20	21643		Washer,13/64idx3/8odx1		Appelez-nous	-
21	10147		Bellows		Appelez-nous	-
22	Y10558		Control Housing Gasket		Appelez-nous	-
23	Y00000000		See Note Cabinet Top -- (see Page 2)		Appelez-nous	-
24	10393		Vinyl Washer			Immediately	$ 22.97
25	COMM PART		Washer   (Replaces: 20103)		Appelez-nous	-
26	02426		Round Head Screw		Appelez-nous	-
27	Y00000000		See Note Locknut -- (included With 10148 Collar)		Appelez-nous	-
28	91176		Lockwasher,3/8 Intshkp				$ 1.44
29	10152		Timer Xreplace		Appelez-nous	-
30	10398		Screw			Immediately	$ 33.34
31	M0282009		Locknut   (Replaces: 23951)				$ 12.06
32	Y10506		Speed Nut		Appelez-nous	-
33	10484		Switch			Immediately	$ 17.14
34	10413		Switch Bracket			Immediately	$ 12.64
35	10406		Push Nut				$ 36.66
36	10475		Gasket		Appelez-nous	-
37	Y00000000		See Note Locknut -- (included With 10154 Collar)		Appelez-nous	-
	NOTE:		Note: Order Complete Wire Harness, 10435 Or Order Wire By The Foot And Gauge.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
