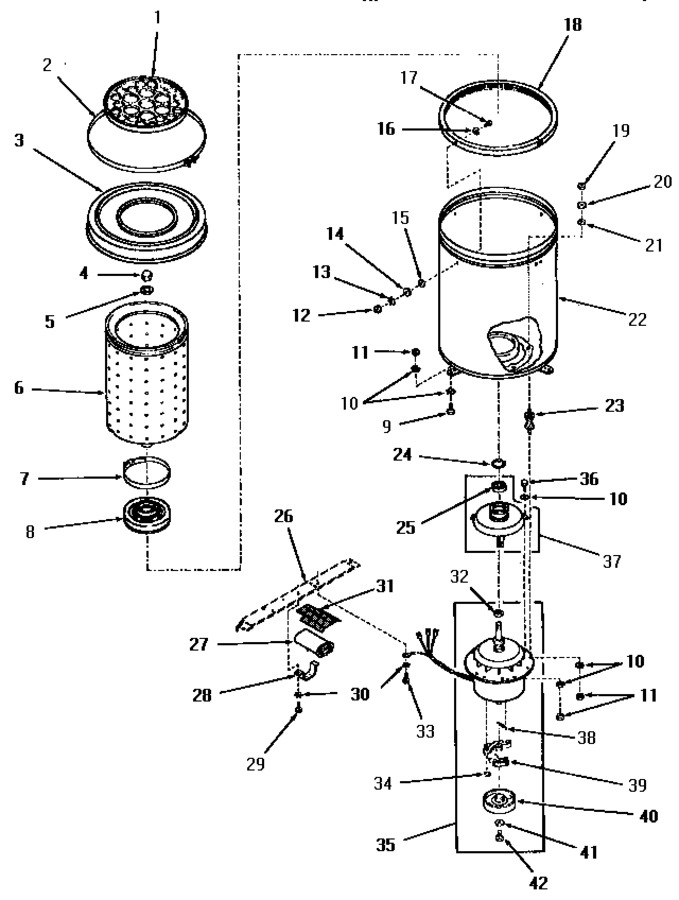

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10194		Spin Tub Mat		Appelez-nous	-
2	10409		Clamp				$ 83.35
3	10108		Seal		Appelez-nous	-
4	10107		Nut, Cap		Appelez-nous	-
5	10204		Lockwasher Xreplace		Appelez-nous	-
6	Y10538		Spin Tub		Appelez-nous	-
7	HS96		Clamp   (Replaces: 10097)				$ 3.18
8	10096		Boot		Appelez-nous	-
9	02422		Screw,1/4-20 X 1/2 Hex		Appelez-nous	-
10	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
11	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
12	21080		Nut		Appelez-nous	-
13	03815		Lockwasher,no.10 Ext Shk				$ 3.34
14	70240		Washer		Appelez-nous	-
15	02928		Washer		Appelez-nous	-
16	10372		Clamp			Immediately	$ 12.15
17	21081		Screw,10-24 X 1/2 Rd H				$ 33.49
18	10084		Bumper Ring				$ 17.00
19	22220		Nut,hex 1/4-20 Ss		Appelez-nous	-
20	10386		Washer Xreplace			Immediately	$ 15.35
21	10203		Lockwasher,sealing		Appelez-nous	-
22	10446		Tub,drain Xreplace		Appelez-nous	-
23	10091		Mount,rubber Xreplace				$ 52.27
24	10090		Retainer Ring			Immediately	$ 21.91
25	10089		Water Seal			Immediately	$ 16.13
26	Y00000000		See Note Bracket -- (see Page 4)		Appelez-nous	-
27	10015		Capacitor		Appelez-nous	-
28	Y10016		Capacitor Mounting Strap		Appelez-nous	-
29	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
30	03815		Lockwasher,no.10 Ext Shk				$ 3.34
31	Y10557		Capacitor Shield		Appelez-nous	-
32	10086		Seal				$ 2.03
33	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
34	10266		Retainer Ring		Appelez-nous	-
35	10085		Motor		Appelez-nous	-
36	24233		Screw,cap-1/4-20 X 3/4		Appelez-nous	-
37	10496		Seal Housing Assembly		Appelez-nous	-
38	10265		Spring		Appelez-nous	-
39	10264		Brake Arm		Appelez-nous	-
40	10267		Drum,brake Xreplace		Appelez-nous	-
41	10286		Sleeve Bearing		Appelez-nous	-
42	10269		Cap Screw		Appelez-nous	-
NI	80602		Plastic Sealer		Appelez-nous	-
