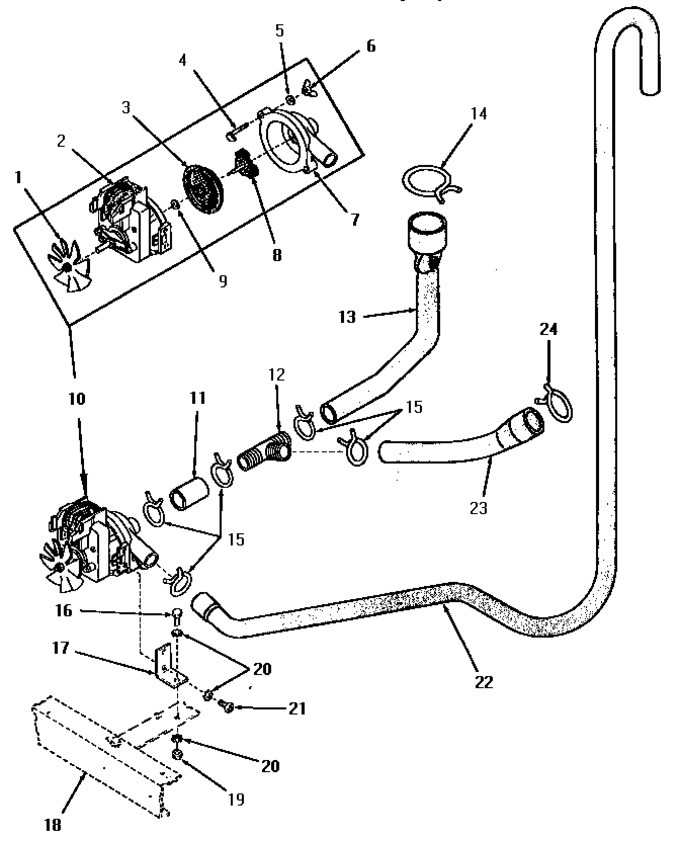

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10272		Fan		Appelez-nous	-
2	10273		Motor		Appelez-nous	-
3	10275		Gasket & Seal		Appelez-nous	-
4	10278		Bolt,j Xreplace		Appelez-nous	-
5	10279		Washer		Appelez-nous	-
6	10280		Nut,wing Xreplace		Appelez-nous	-
7	10277		Pump Cover		Appelez-nous	-
8	10276		Impeller 625-0034 Xreplace		Appelez-nous	-
9	10274		Flinger		Appelez-nous	-
10	Y10530		Motor And Pump Assembly		Appelez-nous	-
11	10430		Valve-to-tee Hose		Appelez-nous	-
12	10434		Tee		Appelez-nous	-
13	10481		Valve Pinch				$ 41.92
14	Y10544		Hose Clamp		Appelez-nous	-
15	21372		Hose Clamp		Appelez-nous	-
16	02422		Screw,1/4-20 X 1/2 Hex		Appelez-nous	-
17	10111		Mounting Bracket				$ 48.02
18	Y00000000		See Note Frame -- (see Page 4)		Appelez-nous	-
19	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
20	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
21	20747		Screw,1/4-20 X 1/2 Rd		Appelez-nous	-
22	10460		Hose,drain Xreplace			Immediately	$ 22.45
23	10482		Drain Tub-to-tee Hose		Appelez-nous	-
24	10180		Clamp		Appelez-nous	-
