SELECT A DIAGRAM

01 - 10502 Transmission Assy


02 - Agitator, Wash Tub And Agitator Post


03 - Cabinet

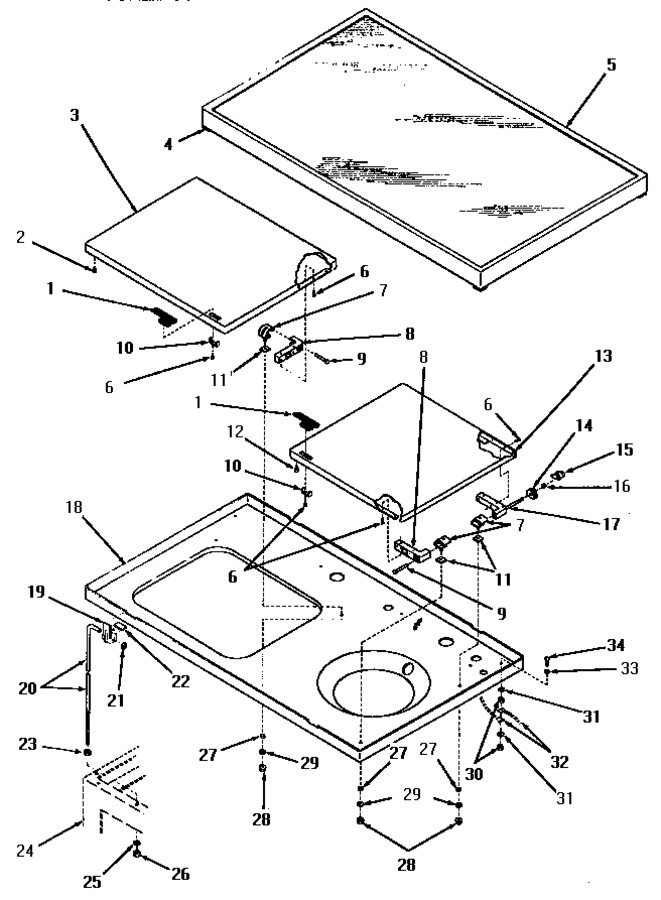

04 - Cabinet Top And Loading Doors


05 - Control Housing And Controls


06 - Motor And Pump Assy And Hoses


07 - Power Cord, Inlet Hose And Clothes Tongs


08 - Spin Tub And Motor


09 - Wash Motor And Frame


10 - Wire Harness, Wire And Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10123		Door Handle		Appelez-nous	-
2	21176		Bumper		Appelez-nous	-
3	10116H		Wash Tub Loading Door, Harvest		Appelez-nous	-
3	10116A		Wash Tub Loading Door, Avocado		Appelez-nous	-
3	10116W		Wash Tub Loading Door, White		Appelez-nous	-
3	10116C		Wash Tub Loading Door, Coppert		Appelez-nous	-
4	10376		Vinyl Cushion			Immediately	$ 12.64
5	10577A		Hand-e-top, Avocado		Appelez-nous	-
5	10577C		Hand-e-top, Coppertone		Appelez-nous	-
5	10577H		Hand-e-top, Harvest Gold		Appelez-nous	-
5	10577W		Hand-e-top, White		Appelez-nous	-
6	22145		Screw,6z-20x 3/8 Ss Rd		Appelez-nous	-
7	10125		Hinge Bracket		Appelez-nous	-
8	10480		Block,hinge Xreplace		Appelez-nous	-
9	Y10539		Rivet		Appelez-nous	-
10	10124		Spacer		Appelez-nous	-
11	10126		Gasket		Appelez-nous	-
12	21176		Bumper		Appelez-nous	-
13	10120H		Spin Tub Loading Door, Harvest		Appelez-nous	-
13	10120W		Spin Tub Loading Door, White		Appelez-nous	-
13	10120C		Spin Tub Loading Door, Coppert		Appelez-nous	-
13	10120A		Spin Tub Loading Door, Avocado		Appelez-nous	-
14	10137		Grommet		Appelez-nous	-
15	10138		Cam		Appelez-nous	-
16	10139		Clip				$ 15.48
17	10494		Hinge Block And Shaft		Appelez-nous	-
18	10418A		Cabinet Top, Avocado		Appelez-nous	-
18	10418C		Cabinet Top, Coppertone		Appelez-nous	-
18	10418H		Cabinet Top, Harvest Gold		Appelez-nous	-
18	10418W		Cabinet Top, White		Appelez-nous	-
19	10408		Hold-down Bracket		Appelez-nous	-
20	10436		Hold-down Rod			Immediately	$ 16.20
21	10525		Code J		Appelez-nous	-
22	Y10517		Cushion		Appelez-nous	-
23	25250		Nut,1/4-20 Hex Nyllock		Appelez-nous	-
24	Y00000000		See Note Frame -- (see Page 4)		Appelez-nous	-
25	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
26	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
27	02928		Washer		Appelez-nous	-
28	22001		Nut,10-24 Nylon Hex Br				$ 99.72
29	COMM PART		Washer   (Replaces: 20103)		Appelez-nous	-
30	03673		Nut		Appelez-nous	-
31	03815		Lockwasher,no.10 Ext Shk				$ 3.34
32	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
33	21643		Washer,13/64idx3/8odx1		Appelez-nous	-
34	03814		Screw,10-24 X 1/2 Roun		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
