Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10431 Rivet Appelez-nous -
2 10411 Spring In-Stock Immediately $ 12.67

3 10442 Slide Bracket Appelez-nous -
4 Y10514 Push Nut Appelez-nous -
5 10438 Pinch Valve Slide In-Stock Immediately $ 17.08

6 52150 Screw, Thermostat Appelez-nous -
7 Y20278 Lockwasher Appelez-nous -
8 10441 Control Rod Bracket In-Stock Immediately $ 17.21

9 10419 Bearing In-Stock Immediately $ 16.26

10 10440 Pinch Valve Control Arm Appelez-nous -
11 10437 Washer Appelez-nous -
12 10484 Switch In-Stock Immediately $ 17.14

13 10398 Screw In-Stock Immediately $ 33.34

14 10439 Pinch Valve Bracket In-Stock Immediately $ 16.35

15 10415 Control Rod In-Stock Immediately $ 13.19

16 10150 Retainer Ring Special Order $ 6.42

17 Y10506 Speed Nut Appelez-nous -
18 WPW10139757 Nut   (Replaces: 20275) Special Order $ 7.16

19 02431 Lockwasher,1/4 Ext Shk Appelez-nous -
20 Y10010 Drain Tub Mounting Bracket Appelez-nous -
21 Y10517 Cushion Appelez-nous -
22 02422 Screw,1/4-20 X 1/2 Hex Appelez-nous -
23 COMM PART Washer   (Replaces: 80090) Appelez-nous -
24 51784 Screw,10b-16 X 1/2 Hex Appelez-nous -
25 03888 Washer Appelez-nous -
26 23604 Nut,hex 10-32 Lock Appelez-nous -
27 01952A Mounting,rubber Appelez-nous -
28 10422 Motor Mounting Plate Appelez-nous -
29 03815 Lockwasher,no.10 Ext Shk Special Order $ 3.34

30 01953 Washer,lower Motor Mou Appelez-nous -
31 10416 Pin,roll In-Stock Immediately $ 13.73

32 10486 Motor Pulley In-Stock Immediately $ 18.08

33 10229 Motor Switch, Emerson Appelez-nous -
33 10230 Motor Switch, General Electric Appelez-nous -
34 10485 Wash Motor Appelez-nous -
35 10432 Ground Wire, Green Appelez-nous -
36 Y10009 Nut,speed Xreplace Appelez-nous -
37 10399 Caster In-Stock Immediately $ 29.54

38 10426 Frame In-Stock Immediately $ 18.27

39 80087 Lockwasher Appelez-nous -
40 COMM PART Nut,hex 5/16-18   (Replaces: 70142) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

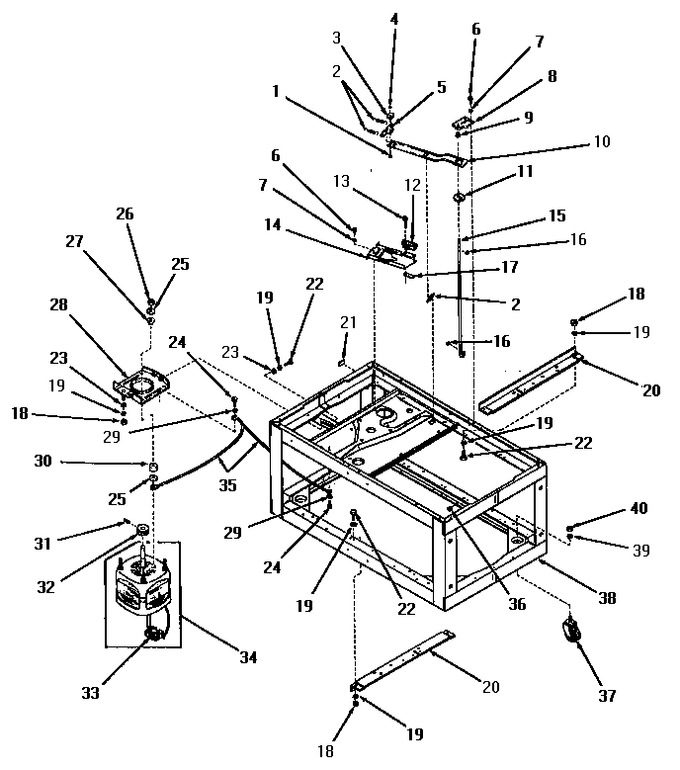

Diagram for DH1150
