SELECT A DIAGRAM

01 - 10502 Transmission Assy

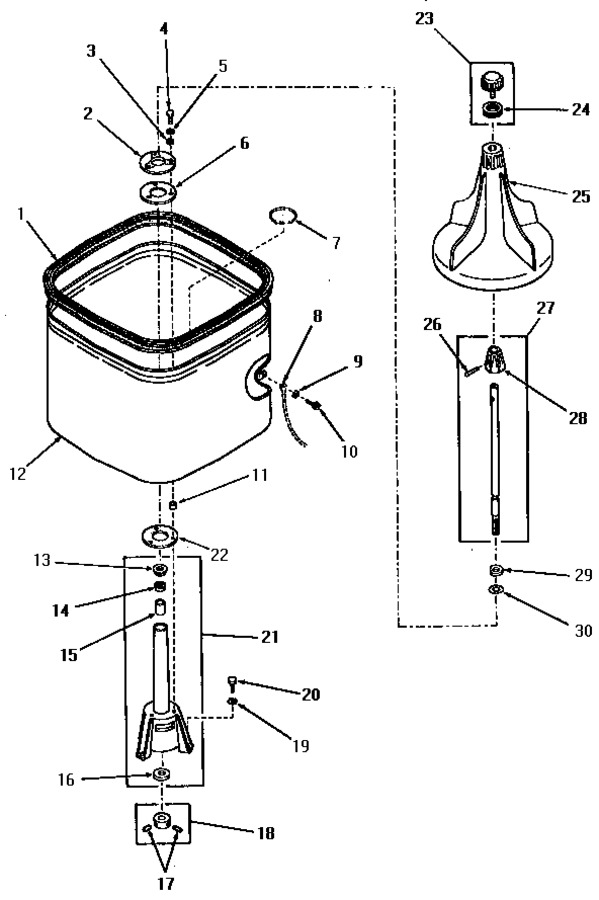

02 - Agitator, Wash Tub And Agitator Post


03 - Cabinet


04 - Cabinet Top And Loading Doors


05 - Control Housing And Controls


06 - Motor And Pump Assy And Hoses


07 - Power Cord, Inlet Hose And Clothes Tongs


08 - Spin Tub And Motor


09 - Wash Motor And Frame


10 - Wire Harness, Wire And Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10073		Gasket Xreplace		Appelez-nous	-
1	Y10556		Tub Rim Gasket		Appelez-nous	-
2	10071		Collar Xreplace				$ 76.34
2	10412		Collar Xreplace			Immediately	$ 13.17
3	10203		Lockwasher,sealing		Appelez-nous	-
4	10401		Screw, Cap				$ 52.48
5	10386		Washer Xreplace			Immediately	$ 15.35
6	10457		Gasket		Appelez-nous	-
6	Y10579		Gasket		Appelez-nous	-
7	Y10583		Screen,drain Xreplace		Appelez-nous	-
8	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
9	03815		Lockwasher,no.10 Ext Shk				$ 3.34
10	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
11	Y10580		Bushing		Appelez-nous	-
12	10462		Wash Tub			Immediately	$ 21.64
12	Y10578		Wash Tub		Appelez-nous	-
13	04700		Bearing,thrust		Appelez-nous	-
14	04702		Seal,water		Appelez-nous	-
15	04703		Sleeve Bearing		Appelez-nous	-
16	10429		Washer,thrust		Appelez-nous	-
17	02771		Screw,1/4-20x3/8 Hex S		Appelez-nous	-
18	10497		Collar,thrust		Appelez-nous	-
19	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
20	02422		Screw,1/4-20 X 1/2 Hex		Appelez-nous	-
21	Y10532		Post,agitator Xreplace		Appelez-nous	-
22	10457		Gasket		Appelez-nous	-
22	Y10579		Gasket		Appelez-nous	-
23	26014		Assy,cap & Ring-agitat				$ 14.95
24	20136		Ring		Appelez-nous	-
25	Y10591		Agitator, White		Appelez-nous	-
26	20243		Pin,taper		Appelez-nous	-
27	10495		Shaft,agitator		Appelez-nous	-
28	20056		Block, Drive				$ 3.68
29	20057		Washer, 21/32 Id X 1.156 Od		Appelez-nous	-
30	04704		Washer,.630idx1.125odx		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
