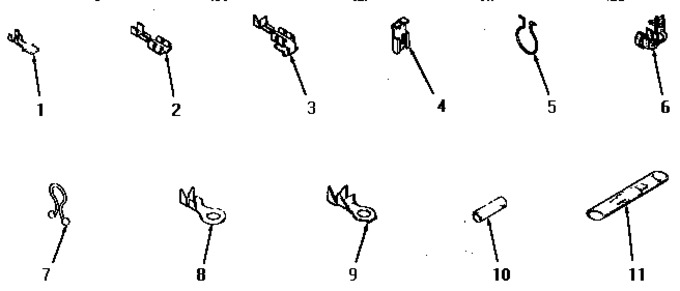

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	00118		Terminal		Appelez-nous	-
2	Y00119		Spade Terminal(18 Gauge)		Appelez-nous	-
3	Y00114		Terminal,spade-1/4 Fem		Appelez-nous	-
4	Y00120		Terminal,flag-1/4 Fema		Appelez-nous	-
5	51291		Clip,wire		Appelez-nous	-
6	10382		Relief,strain Xreplace			Immediately	$ 15.28
7	10400		Wire Tie			Immediately	$ 29.26
8	Y00111		Terminal,ring-10 Stud		Appelez-nous	-
9	00110		Terminal,ring-10 Stud				$ 9.23
10	Y21365		Insulator Sleeve		Appelez-nous	-
11	21091		Connector Two 1/4 Inch Male		Appelez-nous	-
NI	Y00000000		See Note Wire, 18 Gauge -- (order By The Foot And Specify Color)		Appelez-nous	-
