SELECT A DIAGRAM

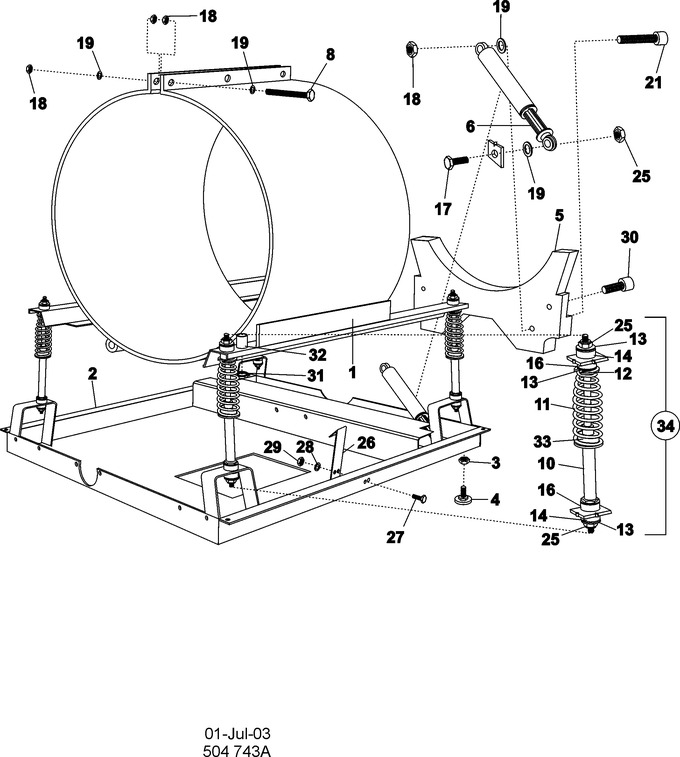

01 - Frame


02 - Cabinet


03 - Control Panel


04 - Door Lock


05 - Soap Hopper And Top Panel


06 - Door


07 - Drain System


08 - Rear Panel


09 - Electrical Components


10 - Tub And Drum


11 - Motor Drive


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004462		Drum-motor Support 25no.	10	Appelez-nous	-
002	23004463		Frame 25no.	10	Appelez-nous	-
003	23001661		Nut M10   (Replaces: 23003764)	10			$ 15.61
004	23003458		Leg	10	Appelez-nous	-
005	23004464		Counterweight	10	Appelez-nous	-
006	23002983		Damper (rd 12-2)	10			$ 392.15
008	23002351		Screw (m10x80)	10	Appelez-nous	-
010	23003451		Leg, Spring	10	Appelez-nous	-
011	23003453		Spring (yellow)	10	Appelez-nous	-
011	23003457		Spring (red)	10	Appelez-nous	-
012	23003454		Holder, Spring (upr) Lu	10	Appelez-nous	-
013	23001282		Washer   (Replaces: 23003455)	10			$ 15.36
014	23003456		Rubber (blk-upr)	10	Appelez-nous	-
016	23003459		Rubber (blk-lwr) Lu	10	Appelez-nous	-
017	23003285		Bolt (m10x50)	10	Appelez-nous	-
018	23001661		Nut M10   (Replaces: 23003764)	10			$ 15.61
019	23003788		Washer	10	Appelez-nous	-
021	23004465		Bolt M10x120	10	Appelez-nous	-
025	23002356		Nut M10	10	Appelez-nous	-
026	23004466		Support, Hose	10	Appelez-nous	-
027	23004114		Screw (m6 X16)   (Replaces: 23002461)	10	Appelez-nous	-
028	23003778		Washer 12	10	Appelez-nous	-
029	23003773		Nut M6	10	Appelez-nous	-
030	23004467		Bolt M12x90	10	Appelez-nous	-
031	23002212		Nut	10	Appelez-nous	-
032	NLA		Swivel	10	Appelez-nous	-
033	23003465		Holder, Spring (lwr)	10	Appelez-nous	-
034	23004373		Shock Absorber Complete	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
