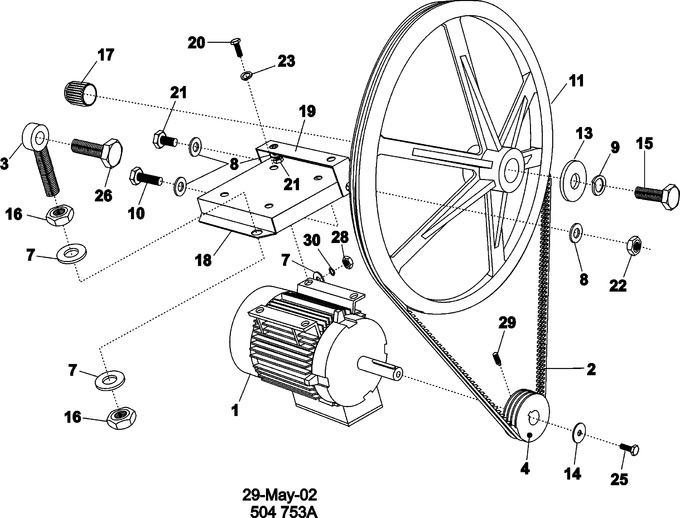

11 - Motor Drive


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004081		Motor 240v 3phase	10	Appelez-nous	-
002	23004504		V-belt 25lb	10			$ 138.39
003	W10286331		Bolt-fixation   (Replaces: 23004505)	10	Appelez-nous	-
004	23004506		V-pulley-motor 25lb	10	Appelez-nous	-
007	23003403		Washer 16bn 737	10	Appelez-nous	-
008	23004023		Washer 10m	10	Appelez-nous	-
009	23002658		Washer (12)	10	Appelez-nous	-
010	23003285		Bolt (m10x50)	10	Appelez-nous	-
011	23001415		Pulley, Basket	10	Appelez-nous	-
013	23004146		Washer 12	10	Appelez-nous	-
014	23003788		Washer	10	Appelez-nous	-
015	23003332		Bolt (m12-1.75 X 25)	10	Appelez-nous	-
016	23004281		Nut M16	10	Appelez-nous	-
017	23001410		Ring, Tolerance (dia. 28)	10	Appelez-nous	-
018	23004507		Motor, Mounting Board	10	Appelez-nous	-
019	23004508		Brace, Motor Mntng	10	Appelez-nous	-
020	23002647		Screw (m8x25)	10	Appelez-nous	-
021	23001905		Bolt M10x25	10	Appelez-nous	-
022	23001661		Nut M10   (Replaces: 23003764)	10			$ 15.61
023	23001263		Washer (8.4)	10	Appelez-nous	-
025	23002475		Bolt (m8x20)	10			$ 13.66
026	23004040		Bolt M16x50	10	Appelez-nous	-
028	NLA		Nut M8	10	Appelez-nous	-
029	23004509		Screw M8x10	10	Appelez-nous	-
030	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
