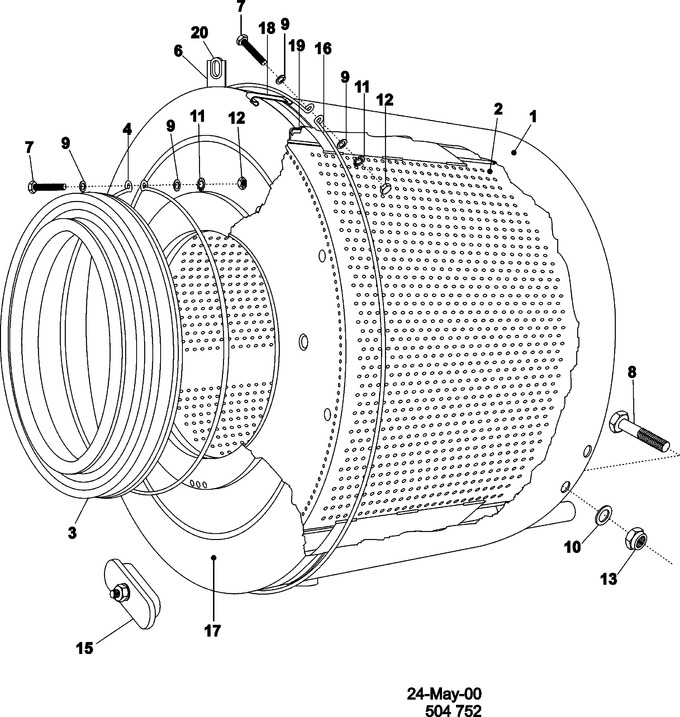

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004500		Tub 25lb	10	Appelez-nous	-
002	23004501		Drum 25lb	10	Appelez-nous	-
003	23003536		Housing, Tub	10	Appelez-nous	-
004	23003537		Ring, Fixation	10	Appelez-nous	-
006	23003539		Passage, Cable	10	Appelez-nous	-
007	23004000		Bolt M6 X 60	10	Appelez-nous	-
008	23003079		Screw (m12x40)	10	Appelez-nous	-
009	23002469		Washer	10	Appelez-nous	-
010	23002657		Washer (13)	10	Appelez-nous	-
011	23002756		Washer	10	Appelez-nous	-
012	23003773		Nut M6	10	Appelez-nous	-
013	NLA		Nut (m12)	10	Appelez-nous	-
015	23001594		Blind, Heating Element	10	Appelez-nous	-
016	23004502		Clamp, Ring Holder	10	Appelez-nous	-
017	23004503		Panel, Front Tub	10	Appelez-nous	-
018	23004141		Front Cover Clip	10	Appelez-nous	-
019	23004148		Tub Front Gasket	10	Appelez-nous	-
020	23003911		Plate, Detection Tiltswitch	10	Appelez-nous	-
