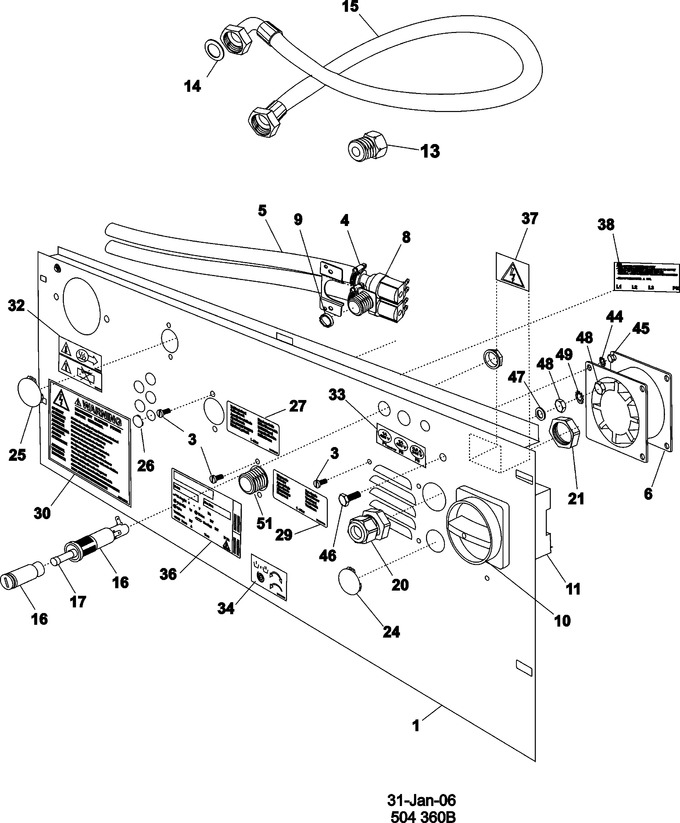

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004493		Panel, Rear 25lb	10	Appelez-nous	-
003	23002423		Screw (m4 X 10)	10	Appelez-nous	-
004	WP596669		Clamp, Hose   (Replaces: 23001506)	10		Immediately	$ 7.56
005	23001507		Waterhose (green)	10	Appelez-nous	-
006	23002165		Ventilator	10			$ 297.78
008	23001455		Valve, Two Way (220v 50/60hz)	10	Appelez-nous	-
009	23003498		Filter, Valve	10	Appelez-nous	-
010	23003497		Knob	10	Appelez-nous	-
011	23003500		Switch, Main (25a)	10	Appelez-nous	-
013	23001477		Adapter (3/4`` Pipe To 3/4`` Hos	10			$ 1,009.32
013	23004521		3/4`` Y Adapter	10	Appelez-nous	-
014	23002921		Washer, Fill Hose	10	Appelez-nous	-
015	23001523		Hose, Connection	10	Appelez-nous	-
016	23002210		Holder, Fuse	10	Appelez-nous	-
017	WP22001555		Fuse 1a 6x32   (Replaces: 23003385)	10		Immediately	$ 27.33
020	23004494		Bushing	10	Appelez-nous	-
021	23004495		Wartel Nut	10	Appelez-nous	-
024	23003997		Plug, Hole	10	Appelez-nous	-
026	23002795		Plug	10	Appelez-nous	-
027	23001469		Sticker, Hot Water	10			$ 1,212.53
029	NLA		Sticker, Cold Hard Water	10	Appelez-nous	-
030	23001465		Sticker, Electricity Warning	10	Appelez-nous	-
032	23002053		Label, Warning Vent Out	10	Appelez-nous	-
033	23003328		Sticker (1a 400v)	10	Appelez-nous	-
034	23001468		Sticker, Spin Direction	10			$ 870.39
036	23004399		Serial Label	10	Appelez-nous	-
037	23003390		Index Plate ``flash``	10	Appelez-nous	-
038	NLA		Label, Terminal	10	Appelez-nous	-
046	23002806		Screw (m6 X 25)	10	Appelez-nous	-
047	23002424		Washer	10	Appelez-nous	-
048	23002651		Nut (m6)	10	Appelez-nous	-
049	23002425		Washer, Lock	10			$ 473.30
051	23002924		T-part (3/4)	10	Appelez-nous	-
