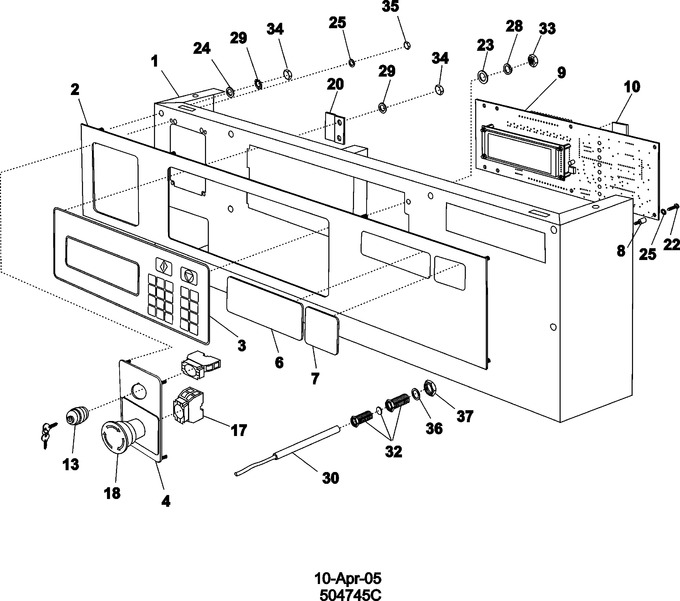

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004482		Bracket, Control Panel	10	Appelez-nous	-
002	23004483		Panel, Facia	10	Appelez-nous	-
003	23004133		Key Board, Full Control	10	Appelez-nous	-
004	23004389		Plate, Insert	10	Appelez-nous	-
006	23004390		Logo, Label	10	Appelez-nous	-
007	23004484		Insert Label	10	Appelez-nous	-
008	23004134		Spacer M3xm5x3	10	Appelez-nous	-
009	23003991		Mcg Controller	10	Appelez-nous	-
010	23003992		Mcg Eeprom Chip Lu	10	Appelez-nous	-
013	23001082		Block, Programming Key	10	Appelez-nous	-
017	23004137		Contact Block	10	Appelez-nous	-
018	23004136		Stop Button Emergency	10	Appelez-nous	-
020	23003871		Bracket, Z	10	Appelez-nous	-
022	23002869		Screw (m3x6)	10	Appelez-nous	-
023	23002862		Washer (5,3)	10	Appelez-nous	-
024	23002504		Washer	10	Appelez-nous	-
025	23002865		Lock Washer M3	10	Appelez-nous	-
028	23004485		Washer, Lock   (Replaces: 23002465)	10	Appelez-nous	-
029	23002950		Lock Washer M4	10	Appelez-nous	-
030	23003831		Sensor, Temperature	10	Appelez-nous	-
032	23003807		Holder Thermostat Sensor	10	Appelez-nous	-
033	W10244602		Nut (m4) Lu   (Replaces: 23002452)	10			$ 11.90
034	23003666		Nut (m4)	10	Appelez-nous	-
035	23002958		Nut M3	10	Appelez-nous	-
036	23002179		Washer	10	Appelez-nous	-
037	23002936		Nut, Sensor Bushing	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
