SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Control Panel


04 - Door Lock


05 - Soap Hopper And Top Panel


06 - Door


07 - Drain System


08 - Rear Panel


09 - Electrical Components


10 - Tub And Drum


11 - Motor Drive


12 - Trunnion

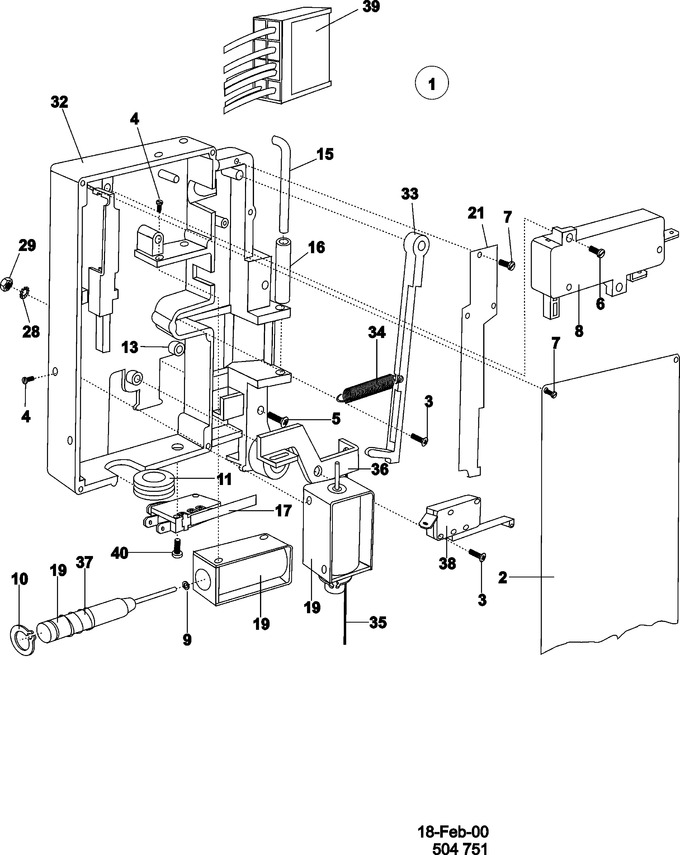

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y23002897		Lock, Door (complete)	10	Appelez-nous	-
002	23001130		Plate, Cover (stnls Steel)	10	Appelez-nous	-
003	23003115		Screw (m3x14)	10	Appelez-nous	-
004	23002869		Screw (m3x6)	10	Appelez-nous	-
005	23003784		Bolt M5x25 Sts Stl	10	Appelez-nous	-
006	23003114		Screw (m4x8) Lu	10	Appelez-nous	-
007	23003113		Screw (m3x6)	10	Appelez-nous	-
008	23001135		Bimetal, Actuator (230v)	10	Appelez-nous	-
009	23001136		Washer (dia. 5.1 X 3.3 X 0.1)	10	Appelez-nous	-
010	23001137		Ring, Retaining (g10)	10	Appelez-nous	-
011	23001138		Bushing, Cable Passage	10	Appelez-nous	-
013	23001140		Bar, Locking	10	Appelez-nous	-
015	23001142		Retainer, Lock Tube (dia.4x45)	10	Appelez-nous	-
016	23001143		Lock Tube (dia. 4x23.5 Stnls)	10	Appelez-nous	-
017	23001145		Microswitch, Long Lever	10	Appelez-nous	-
019	23001146		Coil (240v)	10	Appelez-nous	-
021	23001149		Leaf Spring, Latch Bar	10	Appelez-nous	-
028	23004485		Washer, Teeth	10	Appelez-nous	-
029	23004486		Nut M5	10	Appelez-nous	-
032	Y23002898		Ground, Plate Lock	10	Appelez-nous	-
033	23002899		Handle, Locking Part	10	Appelez-nous	-
034	23002900		Spring, Locking Part	10	Appelez-nous	-
035	23001152		Cord, Opening   (Replaces: 23002901)	10		Immediately	$ 458.78
036	NLA		Level, Opening	10	Appelez-nous	-
037	23002903		Spring, Locking Part	10	Appelez-nous	-
038	23002337		Microswitch W/roller Arm	10	Appelez-nous	-
039	23002905		Wiring, Door Lock	10	Appelez-nous	-
040	23003115		Screw (m3x14)	10	Appelez-nous	-
041	23003863		Plate, Microswitch	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
