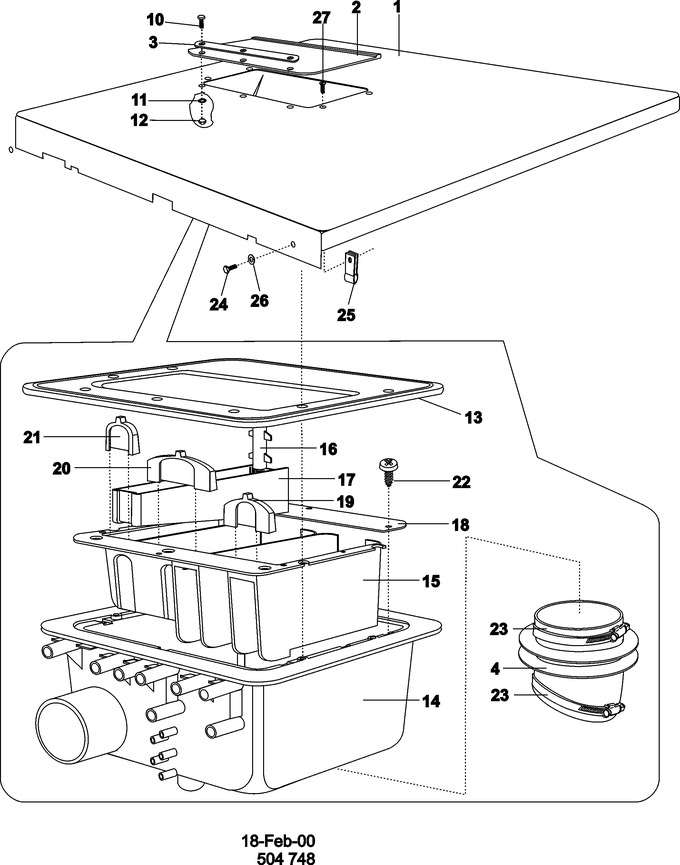

05 - Soap Hopper And Top Panel


06 - Door


07 - Drain System


08 - Rear Panel


09 - Electrical Components


10 - Tub And Drum


11 - Motor Drive


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004487		Panel, Top 25lb	10	Appelez-nous	-
002	23002111		Rubber Cover, Soap Box   (Replaces: 23001003)	10		Immediately	$ 221.87
003	23003781		Lacth, Soap Hopper Cover	10	Appelez-nous	-
004	WP23004115		Rubber, Tub Soap Hopper   (Replaces: 23004187)	10			$ 130.20
010	23001012		Screw (m4 X 12 Stnls Steel)	10			$ 13.48
011	23002111		Washer (4)	10		Immediately	$ 221.87
012	23002652		Nut (qty Of 4 = 1 Piece)	10	Appelez-nous	-
013	23001015		Rubber Seal, Soap Box	10	Appelez-nous	-
014	23001016		Soap Box Housing	10	Appelez-nous	-
015	23001017		Soap Box Insert	10	Appelez-nous	-
016	23001018		Siphon	10	Appelez-nous	-
017	23001019		Tray	10	Appelez-nous	-
018	23001020		Cover, Plate	10	Appelez-nous	-
019	23001021		Drawer, Prewash	10	Appelez-nous	-
020	23001022		Drawer, Main Wash	10	Appelez-nous	-
021	23001023		Drawer, Last Rinse	10	Appelez-nous	-
022	23003782		Screw 3 Stainless Steel Lu	10			$ 3.66
023	WP696392		Clamp, Hose (dia 90/110)   (Replaces: 23001025)	10			$ 7.31
024	23004488		Screw St4 8x25	10	Appelez-nous	-
025	23004481		Speednut	10	Appelez-nous	-
026	23003778		Washer 12	10	Appelez-nous	-
027	23003484		Screw (m5x16)	10			$ 5.27
