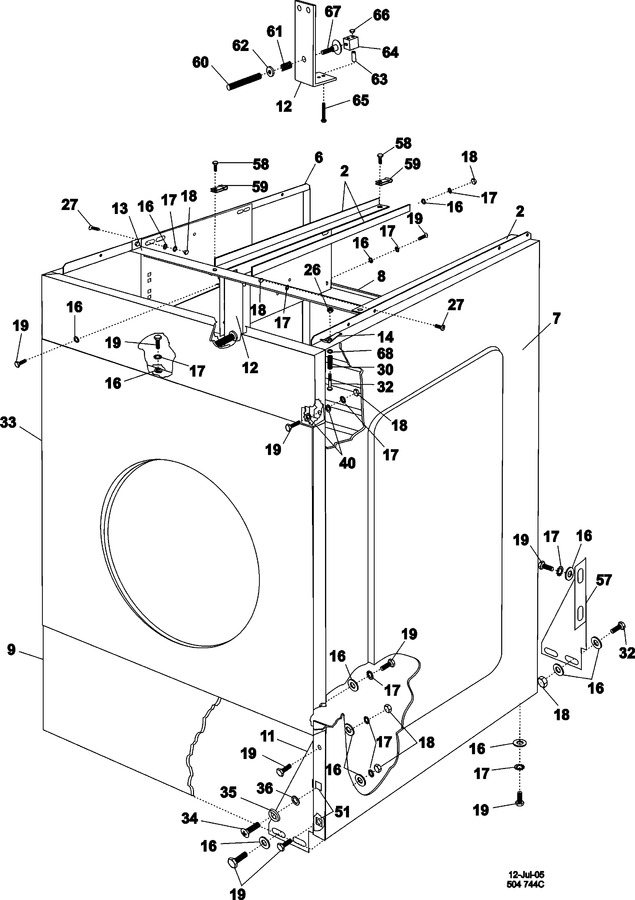

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 002 | 23004469 | Support, Elec Devices | 10 |
|
- | ||||
| 006 | 23004470 | Panel Lh, 25lb | 10 |
|
- | ||||
| 007 | 23004471 | Panel Rh, 25lb | 10 |
|
- | ||||
| 008 | 23004472 | Panel, Rear 25lb | 10 |
|
- | ||||
| 009 | 23004473 | Panel, Service 25lb | 10 |
|
- | ||||
| 011 | 23004474 | Cabinet Holder-front | 10 |
|
- | ||||
| 012 | 23004475 | Plate, Balance | 10 |
|
- | ||||
| 013 | 23004476 | Reinforcement, Cabinet | 10 |
|
- | ||||
| 014 | 23001442 | Cover, Hook | 10 |
|
- | ||||
| 016 | 23002469 | Washer | 10 |
|
- | ||||
| 017 | 23002756 | Washer | 10 |
|
- | ||||
| 018 | 23003773 | Nut M6 | 10 |
|
- | ||||
| 019 | 23004114 | Screw (m6 X16) (Replaces: 23002461) | 10 |
|
- | ||||
| 026 | 23002471 | Nut | 10 |
|
- | ||||
| 027 | NLA | Bolt (m6x16) | 10 |
|
- | ||||
| 030 | 23001445 | Cover, Spring | 10 |
|
- | ||||
| 032 | 23002463 | Screw (m6 X 30) | 10 |
|
- | ||||
| 033 | 23004477 | Panel, Front 25lb | 10 |
|
- | ||||
| 034 | 23002456 | Screw (m6x50) | 10 |
|
- | ||||
| 035 | 23002457 | Washer | 10 |
|
- | ||||
| 036 | 23002458 | Washer (fiber) | 10 |
|
- | ||||
| 040 | 23003778 | Washer 12 | 10 |
|
- | ||||
| 051 | 23002455 | Nut, Rapid (m6) | 10 |
|
- | ||||
| 057 | 23004478 | Bracket, Back Lh | 10 |
|
- | ||||
| 057 | 23004479 | Bracket, Back Rh | 10 |
|
- | ||||
| 058 | 23004480 | Screw St4, 8x13 | 10 |
|
- | ||||
| 059 | 23004481 | Speednut | 10 |
|
- | ||||
| 060 | 23003901 | Spring | 10 |
|
- | ||||
| 061 | 23003900 | Spring | 10 |
|
- | ||||
| 062 | 23002504 | Washer | 10 |
|
- | ||||
| 063 | 23003902 | Spacer | 10 |
|
- | ||||
| 064 | 23003899 | Micro Switch | 10 |
|
- | ||||
| 065 | 23002906 | Screw (m3x25) | 10 |
|
- | ||||
| 066 | 23002958 | Nut M3 | 10 |
|
- | ||||
| 067 | 23003904 | Spring Holder Tiltswitch | 10 |
|
- | ||||
| 068 | 23001027 | Washer (dia. 12x6.5x1.6) | 10 |
|
- |
