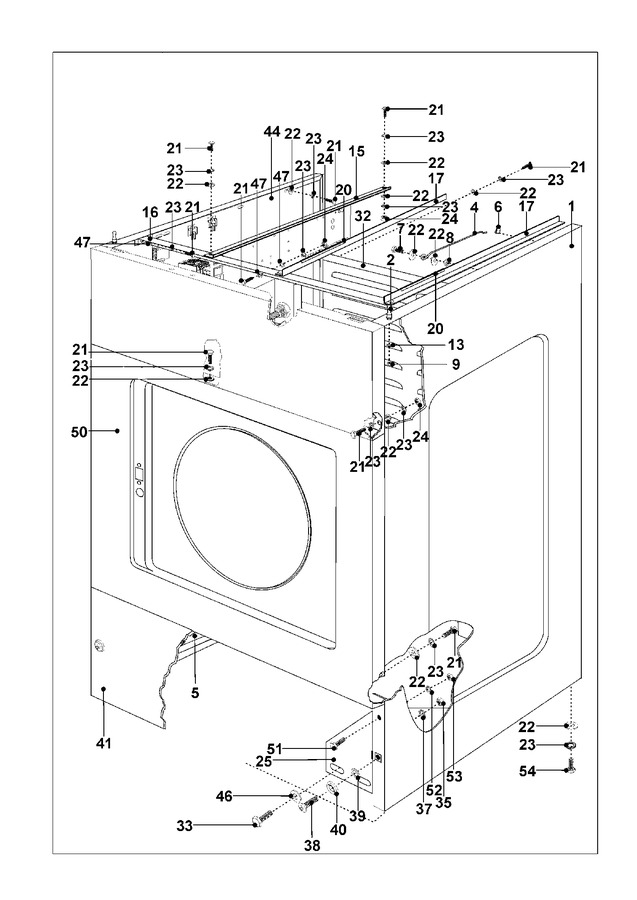

SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Control Panel


04 - Top Cover/soap Hopper


05 - Door Lock


06 - Water System


07 - Rear Panel


08 - Two Motor Drive


09 - Internal Controls


10 - Wash Drum And Tub


11 - Door


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003574		Panel, Side (rt)	10	Appelez-nous	-
001	23003575		Panel, Side (lt)	10	Appelez-nous	-
002	23001332		Pin, Srv	10	Appelez-nous	-
004	23001330		Support Rod, Top Panel	10	Appelez-nous	-
005	23001567		Sheet, Anti-vibration	10	Appelez-nous	-
006	23002454		Hook	10	Appelez-nous	-
007	23001444		Bolt (m6x30)	10	Appelez-nous	-
008	23001310		Nut, Self Locking (m6)	10	Appelez-nous	-
009	W10244602		Nut (m5) Lu   (Replaces: 23001334)	10			$ 11.90
013	23004485		Lock Washer (m5) Lu   (Replaces: 23001333)	10	Appelez-nous	-
015	23003883		Holder Contactor Box	10	Appelez-nous	-
016	23003884		Cross Holder	10	Appelez-nous	-
017	23003885		Holder Soap Hopper	10	Appelez-nous	-
020	23002473		Rubber, Protective	10			$ 4.52
021	23001026		Bolt (m6 X 16)	10	Appelez-nous	-
022	23001159		Washer (dia. 14x8.6x1 Stnls)lu	10	Appelez-nous	-
023	23003580		Washer (m6)	10	Appelez-nous	-
024	23001034		Nut (m6)	10	Appelez-nous	-
025	23003886		Reinforcement Hook Side Panel	10	Appelez-nous	-
032	23003582		Panel, Rear	10	Appelez-nous	-
033	23003593		Screw (m8x25)	10	Appelez-nous	-
035	23001266		Nut M8	10	Appelez-nous	-
037	23001265		Washer (8)	10	Appelez-nous	-
038	23001336		Screw (m6 X 50)	10	Appelez-nous	-
039	23001338		Washer, Fiber (dia. 15x7x3)	10	Appelez-nous	-
040	23001337		Washer, Finishing	10	Appelez-nous	-
041	23003619		Panel, Service	10	Appelez-nous	-
044	23003887		Contactor Box 2-motors	10	Appelez-nous	-
046	23001263		Washer (8.4)	10	Appelez-nous	-
047	23001159		Washer (dia. 14x8.6x1 Stnls)lu	10	Appelez-nous	-
050	23003888		Front Panel	10	Appelez-nous	-
