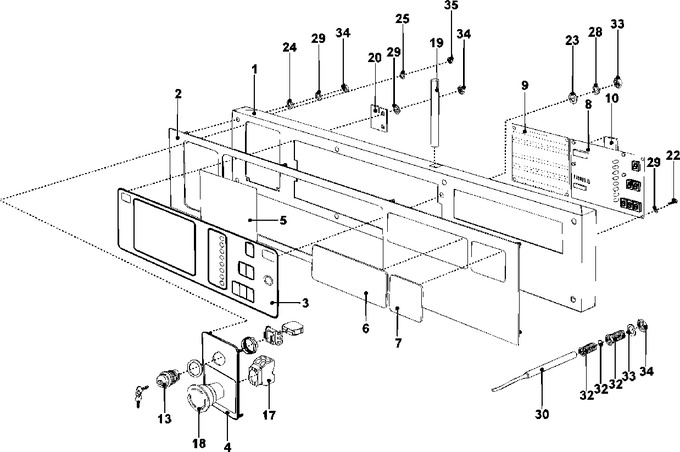

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003889		Control Panel	10	Appelez-nous	-
002	23003910		Facia Panel	10	Appelez-nous	-
003	WP23003890		Keyboard Full Control   (Replaces: 23003890)	10			$ 512.93
004	NLA		Plate, Index (primus)	10	Appelez-nous	-
005	NLA		Plate, Index (primus)	10	Appelez-nous	-
006	NLA		Plate, Index (primus)	10	Appelez-nous	-
008	W10813130		Microprocessor Control(mcb40lu   (Replaces: 23003820)	10	Appelez-nous	-
009	W10813130		Power Board   (Replaces: 23003819)	10	Appelez-nous	-
010	23003894		Chip Full Control Mcb40	10			$ 81.39
013	23001082		Block, Programming Key	10	Appelez-nous	-
017	23002331		Contactor, Central Stop	10	Appelez-nous	-
018	23002332		Knob, Central Stop	10	Appelez-nous	-
019	23003895		Pin Pvc	10	Appelez-nous	-
020	23003871		Bracket, Z	10	Appelez-nous	-
022	23001131		Screw (m3 X 14 Cross Recessed)	10	Appelez-nous	-
023	23001708		Washer (5.3)	10	Appelez-nous	-
024	23001056		Washer (4.3)	10	Appelez-nous	-
028	23001028		Lock Washer External Teethm6lu	10	Appelez-nous	-
029	23001013		Lock Washer External Teeth M4	10	Appelez-nous	-
030	23003831		Sensor, Temperature	10	Appelez-nous	-
032	23003807		Holder Thermostat Sensor	10	Appelez-nous	-
033	23002179		Washer	10	Appelez-nous	-
034	23002936		Nut, Sensor Bushing	10	Appelez-nous	-
035	23001053		Nut (m3)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
