SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Control Panel

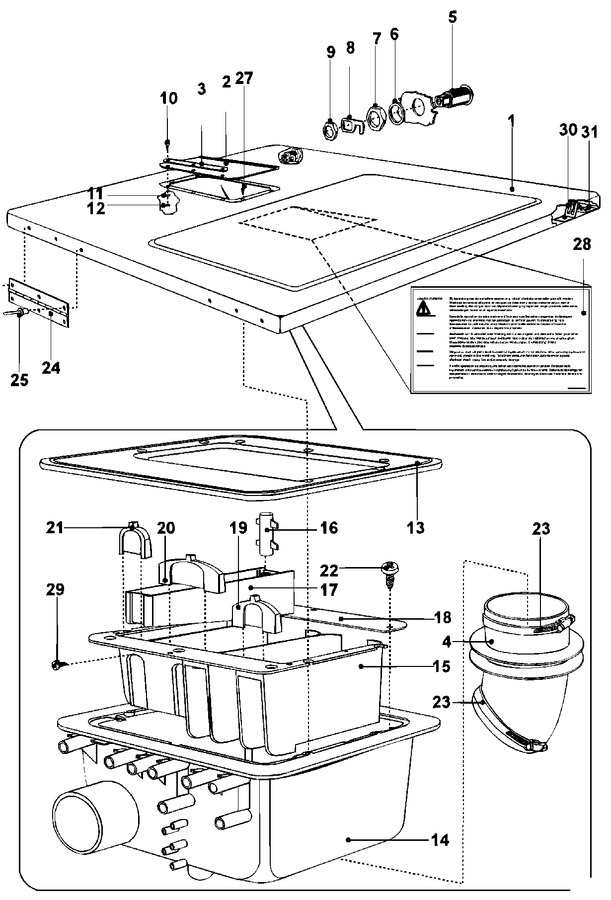

04 - Top Cover/soap Hopper


05 - Door Lock


06 - Water System


07 - Rear Panel


08 - Two Motor Drive


09 - Internal Controls


10 - Wash Drum And Tub


11 - Door


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003623		Cover, Top	10	Appelez-nous	-
002	23002111		Rubber Cover, Soap Box   (Replaces: 23001003)	10		Immediately	$ 221.87
003	23001004		Clamp, Soap Box Cover	10	Appelez-nous	-
004	WP23004115		Hose, Soap Hopper   (Replaces: 23003482)	10			$ 130.20
005	23001006		Lock, Top Panel	10	Appelez-nous	-
006	23001007		Washer, Fiber	10	Appelez-nous	-
007	23001008		Lock Nut (large)	10			$ 186.62
008	23001009		Lock Hook (short)	10	Appelez-nous	-
009	23001011		Nut	10	Appelez-nous	-
010	23001012		Screw (m4 X 12 Stnls Steel)	10			$ 13.48
011	23001636		Washer	10	Appelez-nous	-
012	23001014		Nut M4	10	Appelez-nous	-
013	23001015		Rubber Seal, Soap Box	10	Appelez-nous	-
014	23001016		Soap Box Housing	10	Appelez-nous	-
015	23001017		Soap Box Insert	10	Appelez-nous	-
016	23001018		Siphon	10	Appelez-nous	-
017	23001019		Tray	10	Appelez-nous	-
018	23001020		Cover, Plate	10	Appelez-nous	-
019	23001021		Drawer, Prewash	10	Appelez-nous	-
020	23001022		Drawer, Main Wash	10	Appelez-nous	-
021	23001023		Drawer, Last Rinse	10	Appelez-nous	-
022	23001024		Screw	10	Appelez-nous	-
023	WP696392		Clamp, Hose (dia 90/110)   (Replaces: 23001025)	10			$ 7.31
024	23003624		Hinge	10	Appelez-nous	-
025	23001461		Rivets, Blind	10	Appelez-nous	-
027	23003484		Screw (m5x16)	10			$ 5.27
028	23001550		Label, Earth	10	Appelez-nous	-
029	23002318		Screw, Pan Head (slotted)	10	Appelez-nous	-
030	23001032		Clamp, Srv	10	Appelez-nous	-
031	23001033		Rivets, Blind (dia. 3.2 X 8)lu	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
