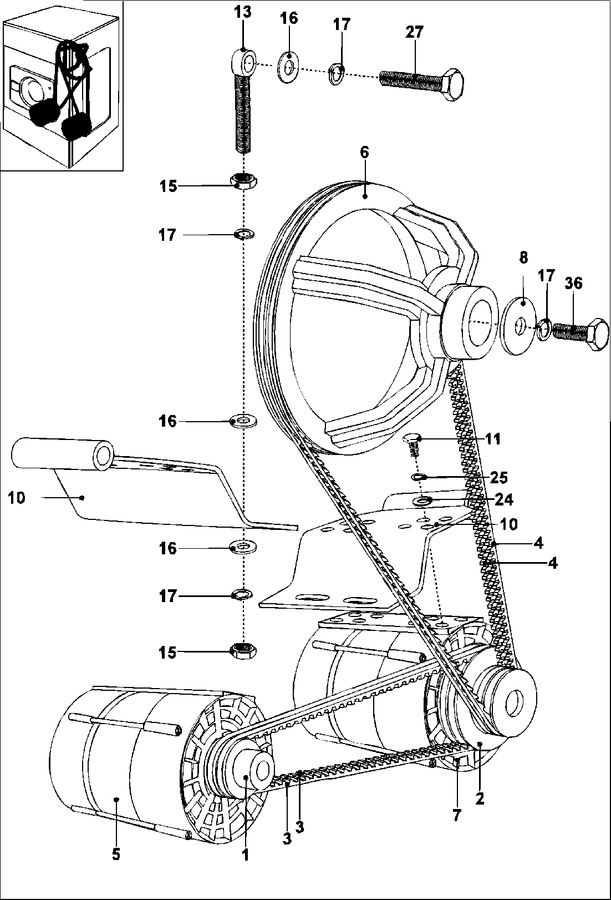

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003583		V-pulley I	10	Appelez-nous	-
002	23003584		V-pulley Ii (50hz)	10	Appelez-nous	-
002	23003585		V-pulley Ii (60hz)	10	Appelez-nous	-
003	23003586		V-belt Ii (xpz 1137 Lw)	10	Appelez-nous	-
004	23003587		V-belt Ii (spz 1562 Lw)	10			$ 40.93
005	23003589		Motor (60hz)	10	Appelez-nous	-
006	23003590		V-pulley	10	Appelez-nous	-
007	23003589		Motor (60hz)	10	Appelez-nous	-
008	23003591		Washer	10	Appelez-nous	-
010	23003896		Motor Plate	10	Appelez-nous	-
011	23003593		Screw (m8x25)	10	Appelez-nous	-
013	NLA		Screw (m16x110)	10	Appelez-nous	-
015	NLA		Nut (m16)	10	Appelez-nous	-
016	23003594		Washer	10	Appelez-nous	-
017	23001757		Washer (16)	10	Appelez-nous	-
024	23003491		Washer (8.4)	10	Appelez-nous	-
025	23001265		Washer (8)	10	Appelez-nous	-
027	23003595		Screw (m16x60)	10	Appelez-nous	-
036	23003596		Screw (m16x30)	10	Appelez-nous	-
