SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Control Panel


04 - Top Cover/soap Hopper


05 - Door Lock


06 - Water System


07 - Rear Panel


08 - Two Motor Drive

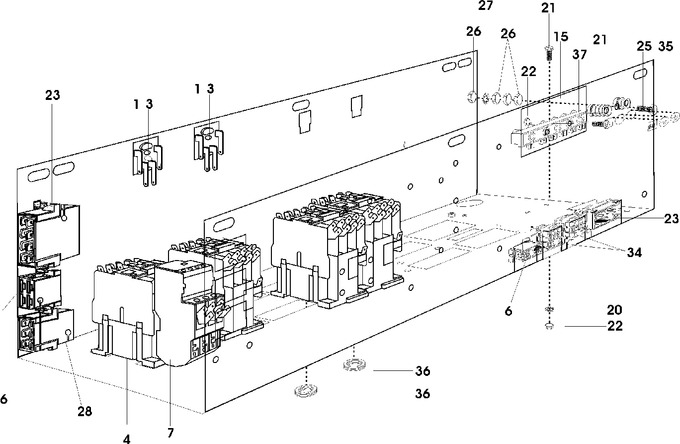

09 - Internal Controls


10 - Wash Drum And Tub


11 - Door


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001094		Bridge, Rectifier	10	Appelez-nous	-
003	23001099		Pc Board Socket	10	Appelez-nous	-
004	23001100		Contactor (lc1-d0901 M7)	10	Appelez-nous	-
006	23001116		Connector Housing (4 Pole)	10	Appelez-nous	-
007	23001107		Relay, Thermal Overload(12-18a	10	Appelez-nous	-
015	23001115		Insulation Paper	10	Appelez-nous	-
020	23001013		Lock Washer External Teeth M4	10	Appelez-nous	-
021	W10295997		Screw (m4 X 16 Ck)   (Replaces: 23001089)	10			$ 6.27
022	23001055		Nut (m4)	10	Appelez-nous	-
023	23001109		Connector Housing (8 Pole)	10		Immediately	$ 2,940.89
025	23001311		Bolt (m6 X 25)	10	Appelez-nous	-
026	23001312		Nut M6	10	Appelez-nous	-
027	23001028		Lock Washer External Teethm6lu	10	Appelez-nous	-
028	23001112		Connector Housing (6 Pole)	10	Appelez-nous	-
034	23003533		Connector (9-pole/female)	10	Appelez-nous	-
035	23002505		Plate, Earth	10	Appelez-nous	-
036	23001138		Bushing, Cable Passage	10	Appelez-nous	-
037	23002154		Board, Terminal (6 Poles)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
