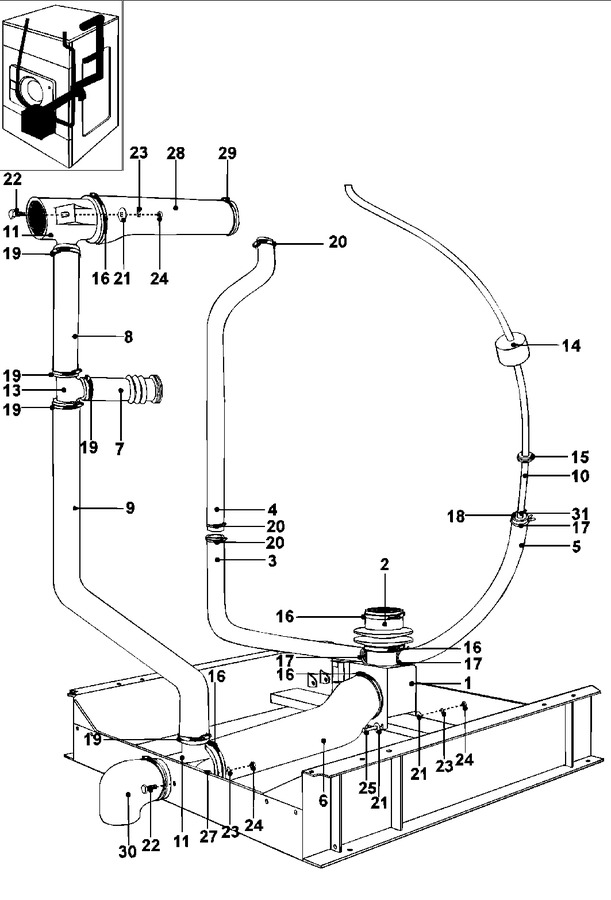

06 - Water System


07 - Rear Panel


08 - Two Motor Drive


09 - Internal Controls


10 - Wash Drum And Tub


11 - Door


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001244		Valve, Drain (240v-50/60hz)	10			$ 2,768.25
002	23001245		Hose, Tub	10			$ 59.66
003	23001549		Hose, Outlet (soaphopper) Lu	10	Appelez-nous	-
004	23001549		Hose, Outlet (soaphopper) Lu	10	Appelez-nous	-
005	23002018		Elbow	10	Appelez-nous	-
006	23001248		Hose, Drain	10	Appelez-nous	-
007	23001250		Hose, Air Vent	10	Appelez-nous	-
008	23001251		Hose, Overflow	10	Appelez-nous	-
009	23001251		Hose, Overflow	10	Appelez-nous	-
010	23001252		Hose, Water Level Switch	10	Appelez-nous	-
011	23001253		Drain Tee	10	Appelez-nous	-
013	23001255		Tee, Overflow Hose	10	Appelez-nous	-
014	23003486		Cell, Open	10	Appelez-nous	-
015	23003487		Washer, Rubber	10	Appelez-nous	-
016	WP696392		Clamp, Hose (70-90)   (Replaces: 23001258)	10			$ 7.31
017	WP285655		Clamp, Corbin (a17.5)   (Replaces: 23001259)	10		Immediately	$ 7.55
018	WP596669		Clamp, Corbin (a5.5)   (Replaces: 23001257)	10		Immediately	$ 7.56
019	23001750		Ring, Clamp (40-60)	10	Appelez-nous	-
020	WP616099		Clamp, Hose (20-32)   (Replaces: 23001262)	10		Immediately	$ 7.03
021	23001263		Washer (8.4)	10	Appelez-nous	-
022	23003593		Screw (m8x25)	10	Appelez-nous	-
023	23001265		Washer (8)	10	Appelez-nous	-
024	23001266		Nut M8	10	Appelez-nous	-
025	23001267		Bolt (m8 X 120)	10	Appelez-nous	-
026	23001260		Bushing, Air Dome Hose	10	Appelez-nous	-
027	23003491		Washer (8.4)	10	Appelez-nous	-
028	23001254		Air Vent Hose, Soap Box	10	Appelez-nous	-
029	WP696392		Clamp, Hose (70-90)   (Replaces: 23001258)	10			$ 7.31
030	23001268		Hose, Drain (90 Dia.)	10	Appelez-nous	-
031	NLA		Ring, Corbin	10	Appelez-nous	-
