Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 23003599 Tub (steam) 10 Appelez-nous -
001 23003897 Tub 10 Appelez-nous -
002 23003600 Drum 10 Appelez-nous -
003 23003898 Drum Plate 10 Appelez-nous -
007 23003536 Housing, Tub 10 Appelez-nous -
008 23003537 Ring, Fixation 10 Appelez-nous -
009 23003911 Plate, Detection Tiltswitch 10 Appelez-nous -
010 23003539 Passage, Cable 10 Appelez-nous -
011 WPW10399291 Element, Heating 80lb   (Replaces: 23002191) 10 Special Order $ 174.04

012 23001594 Blind, Heating Element 10 Appelez-nous -
014 23003603 Ring Ii 10 Appelez-nous -
021 NLA Washer 10 Appelez-nous -
022 NLA Nut (m16) 10 Appelez-nous -
023 23003541 Screw (m6x70) 10 Appelez-nous -
024 23001309 Washer (6.4) Lu 10 Appelez-nous -
026 23001028 Lock Washer External Teethm6lu 10 Appelez-nous -
027 23003606 Nut (m6) 10 Appelez-nous -
028 23003595 Screw (m16x60) 10 Appelez-nous -
029 23003899 Micro Switch 10 Appelez-nous -
030 23003900 Spring 10 Appelez-nous -
031 23003901 Spring 10 Appelez-nous -
032 23003902 Spacer 10 Appelez-nous -
033 23002951 Washer, Fiber 10 Appelez-nous -
034 23003903 Screw M3x25 10 Appelez-nous -
035 23001053 Nut (m3) 10 Appelez-nous -
036 23003904 Spring Holder Tiltswitch 10 Appelez-nous -
037 23003905 Support Tilt Switch 10 Appelez-nous -
038 NLA Injector (low Pressure) 10 Appelez-nous -
039 23003906 Flexible 10 Appelez-nous -
040 23003907 Double Nipple Steam 10 Appelez-nous -
041 NLA Valve, Steam (1/2``) 10 Appelez-nous -
042 23003908 Sealing Metal 22x27 10 Appelez-nous -
043 23003912 Support, Steam Valve 10 Appelez-nous -
044 23001026 Bolt (m6 X 16) 10 Appelez-nous -
045 23001028 Lock Washer External Teethm6lu 10 Appelez-nous -
046 23001309 Washer (6.4) Lu 10 Appelez-nous -

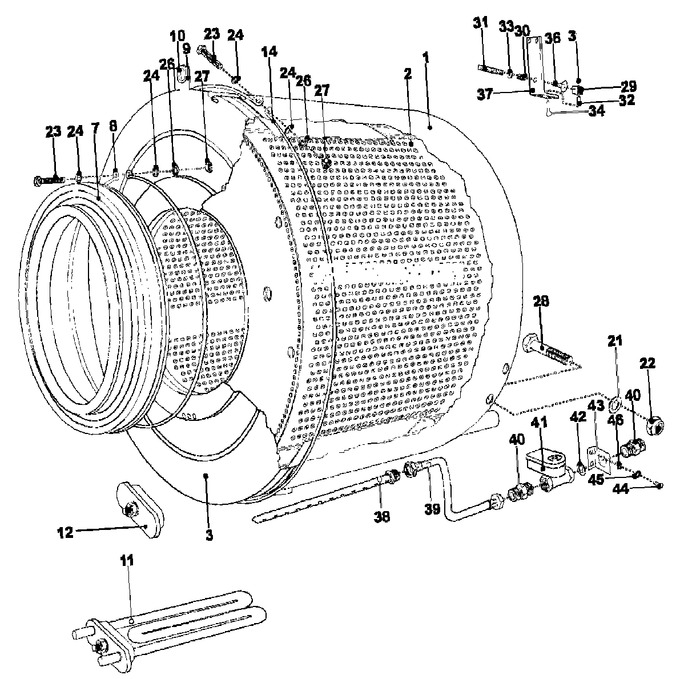

    View Diagram in Separate Window     Print Icon   Print Part List
