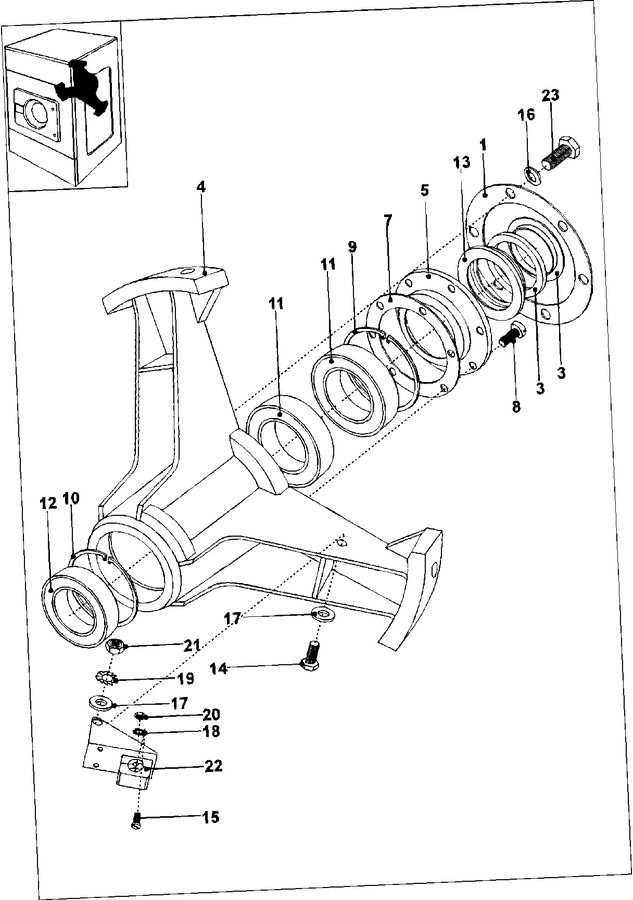

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003607		Plate, Pressure	10	Appelez-nous	-
003	23003608		Ring, Counter	10	Appelez-nous	-
004	23003609		Housing, Bearing	10	Appelez-nous	-
005	23003610		Ring, Joint	10	Appelez-nous	-
007	23003611		Seal	10	Appelez-nous	-
008	8169480		Screw (m5x12 Stainless Steel)   (Replaces: 23001184)	10			$ 11.15
009	23003612		Ring, Securing (d110)	10	Appelez-nous	-
010	23003613		Ring, Securing (d100)	10	Appelez-nous	-
011	23003614		Bearing	10	Appelez-nous	-
012	23003615		Bearing	10	Appelez-nous	-
013	23003616		Seal, Axial	10	Appelez-nous	-
014	23001444		Bolt (m6x30)	10	Appelez-nous	-
015	23001361		Bolt M4x10	10	Appelez-nous	-
016	23001201		Washer (dia. 22x11x1 Brass)	10			$ 303.26
017	23001309		Washer (6.4) Lu	10	Appelez-nous	-
018	23001013		Lock Washer External Teeth M4	10	Appelez-nous	-
019	23001028		Lock Washer External Teethm6lu	10	Appelez-nous	-
020	23001055		Nut (m4)	10	Appelez-nous	-
021	23001034		Nut (m6)	10	Appelez-nous	-
022	23003556		Clip, Cable	10	Appelez-nous	-
023	23001389		Bolt (m10 X 25 Stnls Steel)	10	Appelez-nous	-
