SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Basket And Outer Shell Assy


04 - Inner Tub


05 - Front Counter Weight


06 - Trunnion And Bearing Assy


07 - Motor And Basket Pulley


08 - Idler Pulley


09 - Door


10 - Door Lock


11 - Soap Box


12 - Top Cover


13 - Control Panel


14 - Electrical Components


15 - Soap Injection And Accessories

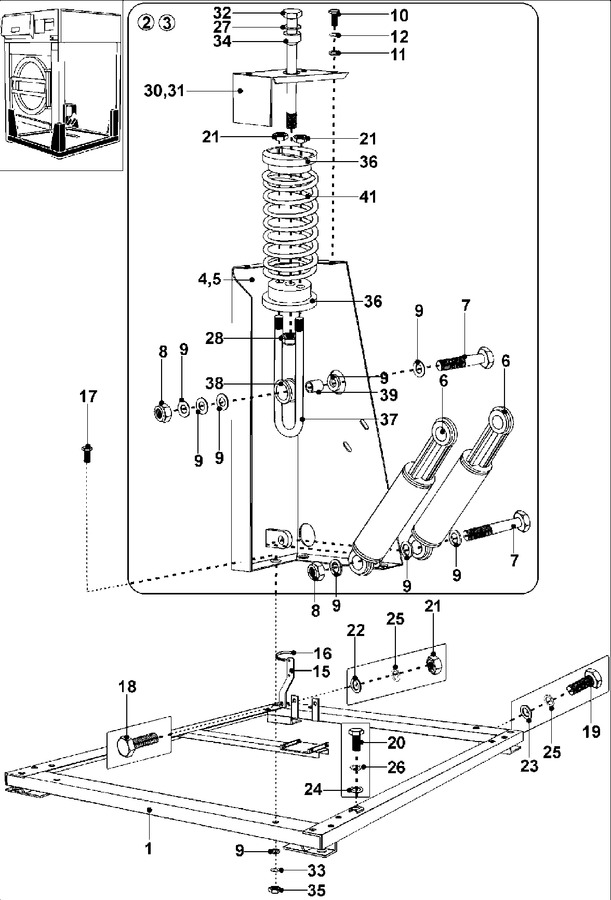

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003823		Frame, Foundation	10	Appelez-nous	-
002	23002979		Leg (complete)	10	Appelez-nous	-
003	23002980		Leg (complete)	10	Appelez-nous	-
004	23002981		Leg	10	Appelez-nous	-
005	23002982		Leg	10	Appelez-nous	-
006	23002983		Damper (rd 12-2)	10			$ 392.15
007	23002984		Screw (m10x80)	10	Appelez-nous	-
008	23002356		Nut M10	10	Appelez-nous	-
009	23002655		Washer (10.5)	10	Appelez-nous	-
010	23004114		Screw (m6 X16)   (Replaces: 23002461)	10	Appelez-nous	-
011	23002282		Washer (6)	10	Appelez-nous	-
012	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
015	23002985		Holder	10	Appelez-nous	-
016	23002986		Strip, Binding	10	Appelez-nous	-
017	23002987		Screw (m10x30)	10	Appelez-nous	-
018	23002475		Bolt (m8x20)	10			$ 13.66
019	23001784		Bolt (m8x14)	10	Appelez-nous	-
020	23001733		Screw (m6x10)	10	Appelez-nous	-
021	23002435		Nut (m8)	10	Appelez-nous	-
022	23002653		Washer (8/6)	10	Appelez-nous	-
023	NLA		Washer (8.4)	10	Appelez-nous	-
024	WP311093		Washer (6)   (Replaces: 23002726)	10			$ 7.25
025	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
026	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
027	23002988		Washer (10.5)	10	Appelez-nous	-
028	23002356		Nut M10	10	Appelez-nous	-
030	23003824		Plate, Small	10			$ 26.78
031	23003825		Plate, Small	10	Appelez-nous	-
032	23002991		Screw	10			$ 225.63
033	23002654		Washer (10)	10	Appelez-nous	-
034	23002992		Bushing, Suspension Bolt	10	Appelez-nous	-
035	DC60-50145A		Nut M10   (Replaces: 23001661)	10			$ 2.39
036	23002993		Holder, Spring (plastic)	10	Appelez-nous	-
037	23002994		Hook, Suspension	10	Appelez-nous	-
038	23002692		Sleeve	10	Appelez-nous	-
039	23002995		Piece, Insertion	10	Appelez-nous	-
041	23002996		Spring	10			$ 38.45

    View Diagram in Separate Window       Print Part List
