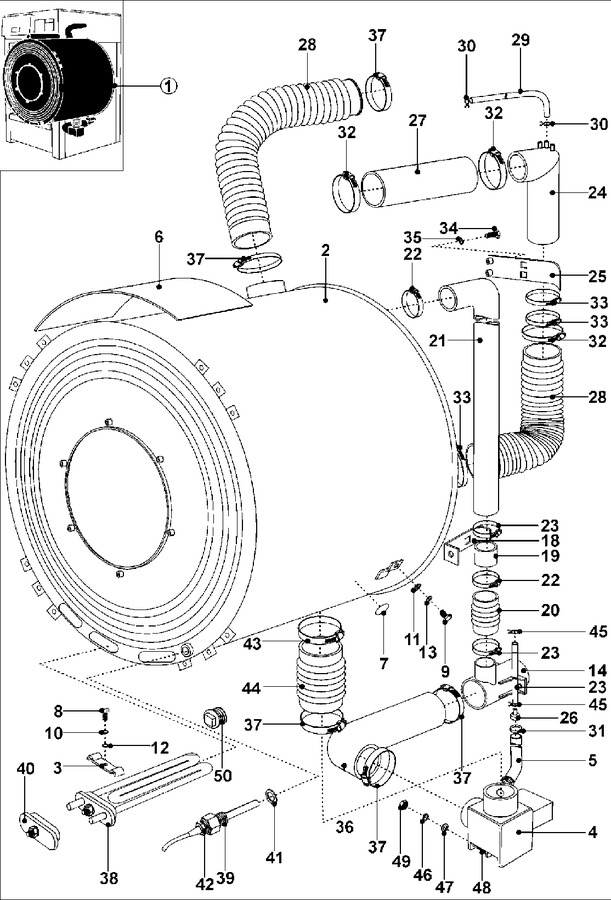

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23003032 | Drum, Outer (complete) | 10 |
|
- | ||||
| 002 | 23003033 | Drum, Outside | 10 |
|
- | ||||
| 003 | NLA | Grip | 10 |
|
- | ||||
| 004 | 23001244 | Valve, Drain (240v-50/60hz) | 10 |
|
$ 2,768.25 | ||||
| 005 | 23003035 | Elbow | 10 |
|
- | ||||
| 006 | 23003036 | Plate, Black | 10 |
|
- | ||||
| 007 | 23002505 | Plate, Earth | 10 |
|
- | ||||
| 008 | 23001781 | Bolt (m4x10) | 10 |
|
- | ||||
| 009 | 23001733 | Screw (m6x10) | 10 |
|
- | ||||
| 010 | 23002129 | Washer (m4) | 10 |
|
- | ||||
| 011 | 23002282 | Washer (6) | 10 |
|
- | ||||
| 012 | 23002674 | Spring, Lock Washer | 10 |
|
$ 1,104.18 | ||||
| 013 | 20007283 | Washer, Spring Lock (6) (Replaces: 23002440) | 10 |
|
$ 504.91 | ||||
| 014 | 23001253 | Drain Tee | 10 |
|
- | ||||
| 018 | NLA | Holder, Overflow Hose | 10 |
|
- | ||||
| 019 | 23003038 | Tube | 10 |
|
- | ||||
| 020 | 23003039 | Hose, Rubber | 10 |
|
- | ||||
| 021 | 23002017 | Hose, Overflow | 10 |
|
- | ||||
| 022 | WP616099 | Clamp, Hose (32-50) (Replaces: 23001261) | 10 |
|
Immediately | $ 7.03 | |||
| 023 | 23001252 | Hose, Water Level Switch | 10 |
|
- | ||||
| 024 | 23003830 | Elbow | 10 |
|
- | ||||
| 025 | 23003041 | Holder, Air Break | 10 |
|
- | ||||
| 026 | 23001260 | Bushing, Air Dome Hose | 10 |
|
- | ||||
| 027 | 23001589 | Tube, Soap Box (1=210mm) | 10 |
|
- | ||||
| 028 | 23003042 | Hose, Rubber | 10 |
|
- | ||||
| 029 | 23002193 | Hose | 10 |
|
- | ||||
| 030 | WP596669 | Clamp, Hose (Replaces: 23001506) | 10 |
|
Immediately | $ 7.56 | |||
| 031 | WP616099 | Clamp, Hose (20-32) (Replaces: 23001262) | 10 |
|
Immediately | $ 7.03 | |||
| 032 | 23001256 | Clamp, Hose (60-80) | 10 |
|
- | ||||
| 033 | 23001750 | Ring, Clamp (40-60) | 10 |
|
- | ||||
| 034 | 23004114 | Screw (m6x16) (Replaces: 23001641) | 10 |
|
- | ||||
| 035 | 23002130 | Washer (6) | 10 |
|
- | ||||
| 036 | 23003043 | Elbow | 10 |
|
- | ||||
| 037 | WP696392 | Clamp, Hose (70-90) (Replaces: 23001258) | 10 |
|
$ 7.31 | ||||
| 038 | WPW10399309 | Element, Heat 100-125lb (Replaces: 23002482) | 10 |
|
$ 174.01 | ||||
| 039 | 23003831 | Sensor, Temperature | 10 |
|
- | ||||
| 040 | 23001594 | Blind, Heating Element | 10 |
|
- | ||||
| 041 | 23002179 | Washer | 10 |
|
- | ||||
| 042 | WP696392 | Clamp, Hose (dia 90/110) (Replaces: 23001025) | 10 |
|
$ 7.31 | ||||
| 042 | 23003807 | Holder Thermostat Sensor | 10 |
|
- | ||||
| 043 | WP696392 | Clamp, Hose (dia 90/110) (Replaces: 23001025) | 10 |
|
$ 7.31 | ||||
| 044 | 23003044 | Hose, Rubber Outlet | 10 |
|
- | ||||
| 045 | WP596669 | Clamp, Corbin (a5.5) (Replaces: 23001257) | 10 |
|
Immediately | $ 7.56 | |||
| 046 | 23002439 | Washer, Spring Lock (8) | 10 |
|
- | ||||
| 047 | 23002653 | Washer (8/6) | 10 |
|
- | ||||
| 048 | NLA | Screw (m8x20) | 10 |
|
- | ||||
| 049 | 23002435 | Nut (m8) | 10 |
|
- | ||||
| 050 | 23002480 | Plug (3/4) | 10 |
|
- |
