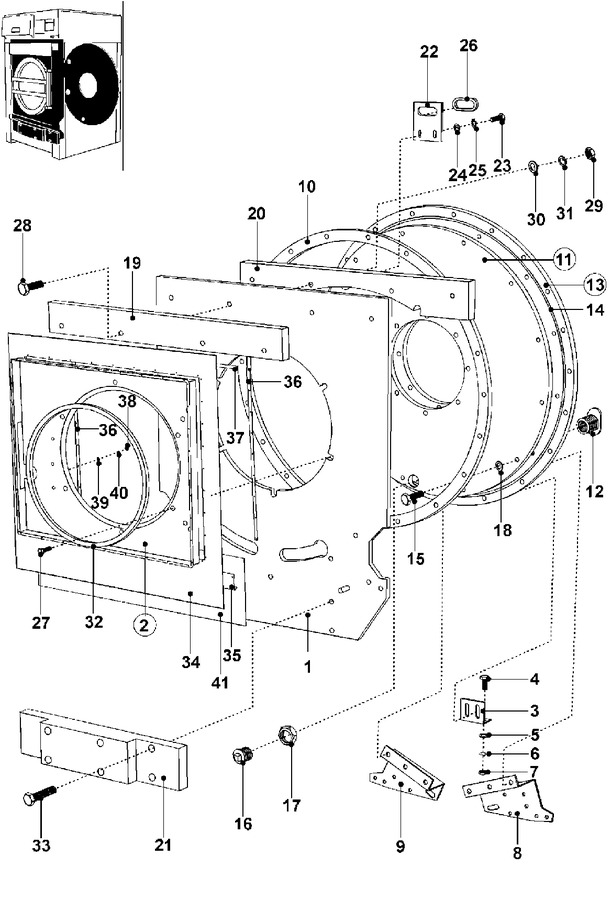

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003049		Counter Weight (front)	10	Appelez-nous	-
002	23003835		Cover, Complete	10	Appelez-nous	-
003	23003051		Support	10	Appelez-nous	-
004	23002987		Screw (m10x30)	10	Appelez-nous	-
005	23002655		Washer (10.5)	10	Appelez-nous	-
006	23002654		Washer (10)	10	Appelez-nous	-
007	DC60-50145A		Nut M10   (Replaces: 23001661)	10			$ 2.39
008	23003052		Holder, Damper	10	Appelez-nous	-
009	23003053		Damper, Holder	10	Appelez-nous	-
010	23003054		Ring, Assembling Drum	10	Appelez-nous	-
011	23003055		Plate, Back	10	Appelez-nous	-
012	23003056		Joint, Screw	10	Appelez-nous	-
013	23003836		Plate, Rear	10	Appelez-nous	-
014	23003058		Sealing	10	Appelez-nous	-
015	23002422		Screw (m6 X 12)	10	Appelez-nous	-
016	23002480		Plug (3/4)	10	Appelez-nous	-
017	23003059		Nut, Binding	10	Appelez-nous	-
018	23002281		Washer (6-copper)	10	Appelez-nous	-
019	23003060		Weight (upper)	10	Appelez-nous	-
020	23003061		Weight (upper-2)	10	Appelez-nous	-
021	23003062		Weight (lower)	10	Appelez-nous	-
022	23003063		Plate, Out Of Balance	10	Appelez-nous	-
023	23002462		Screw (m6 X 20) Lu	10			$ 5.14
024	23002282		Washer (6)	10	Appelez-nous	-
025	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
026	23001117		Ring, Rubber (dia. 25)	10	Appelez-nous	-
027	23002721		Screw (m4x12)	10	Appelez-nous	-
028	NLA		Screw (m8x80)	10	Appelez-nous	-
029	23002435		Nut (m8)	10	Appelez-nous	-
030	23002653		Washer (8/6)	10	Appelez-nous	-
031	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
032	23002473		Rubber, Protective	10			$ 4.52
033	NLA		Screw (m10x120)	10	Appelez-nous	-
034	23003837		Rubber	10	Appelez-nous	-
035	23003838		Strip, Metal Bottom	10	Appelez-nous	-
036	23003839		Strip, Metal Sides	10	Appelez-nous	-
037	23003840		Strip, Metal Top	10	Appelez-nous	-
038	23002652		Nut (qty Of 4 = 1 Piece)	10	Appelez-nous	-
039	23002129		Washer (m4)	10	Appelez-nous	-
040	23002674		Spring, Lock Washer	10			$ 1,104.18
041	23003841		Cardboard	10	Appelez-nous	-
