SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Basket And Outer Shell Assy


04 - Inner Tub


05 - Front Counter Weight


06 - Trunnion And Bearing Assy


07 - Motor And Basket Pulley


08 - Idler Pulley


09 - Door


10 - Door Lock


11 - Soap Box


12 - Top Cover


13 - Control Panel


14 - Electrical Components


15 - Soap Injection And Accessories

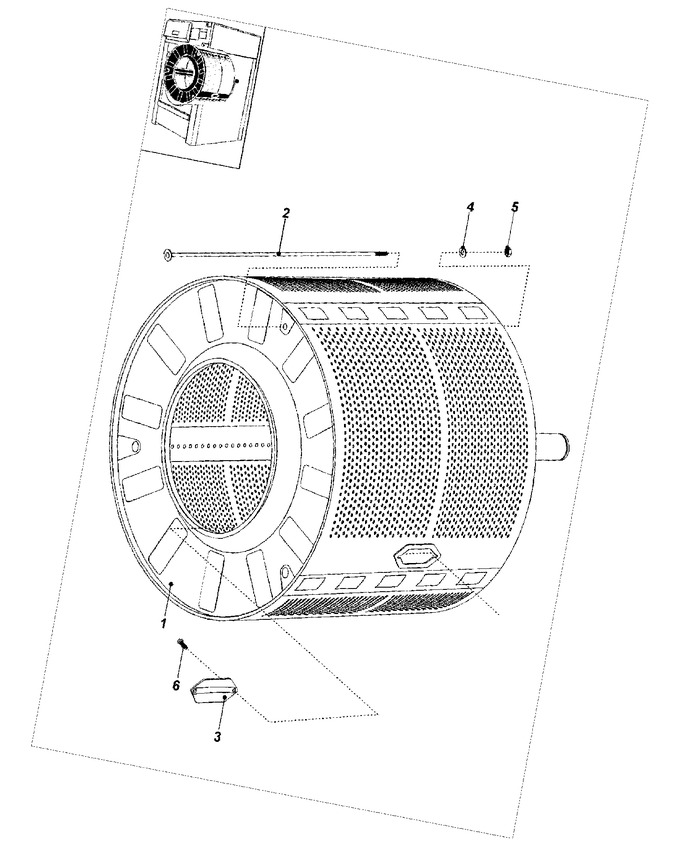

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003046		Drum, Washing	10	Appelez-nous	-
002	23003832		Bolt	10	Appelez-nous	-
003	23002259		Cover	10	Appelez-nous	-
004	23003833		Washer	10	Appelez-nous	-
005	23003834		Nut M14	10	Appelez-nous	-
006	23002617		Screw (m4x8)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
