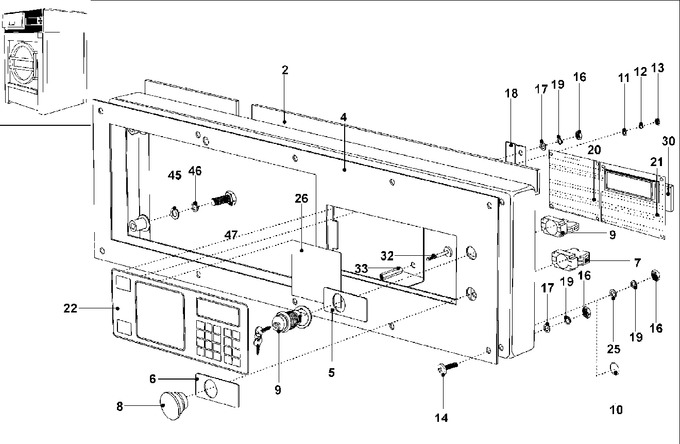

13 - Control Panel


14 - Electrical Components


15 - Soap Injection And Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23003867		Cover, Program(complete)	10	Appelez-nous	-
004	23003868		Panel, Facia	10	Appelez-nous	-
005	23003869		Label, Run	10	Appelez-nous	-
006	23003870		Label, Stop	10	Appelez-nous	-
007	23002331		Emergency Bloc (w/lamp)   (Replaces: 23001075)	10	Appelez-nous	-
008	23002331		Emergency Stop   (Replaces: 23001078)	10	Appelez-nous	-
009	23001082		Block, Programming Key	10	Appelez-nous	-
010	23002505		Plate, Earth	10	Appelez-nous	-
011	23002865		Lock Washer M3	10	Appelez-nous	-
012	NLA		Washer	10	Appelez-nous	-
013	23002958		Nut M3	10	Appelez-nous	-
014	23002721		Screw (m4x12)	10	Appelez-nous	-
016	23003666		Nut (m4)	10	Appelez-nous	-
017	23002438		Washer (m6)	10	Appelez-nous	-
018	23003871		Bracket, Z	10	Appelez-nous	-
019	23002400		Washer	10	Appelez-nous	-
020	W10813130		Power Board   (Replaces: 23003819)	10	Appelez-nous	-
021	W10813130		Microprocessor Control(mcb40lu   (Replaces: 23003820)	10	Appelez-nous	-
022	23003821		Keyboard	10	Appelez-nous	-
025	23002129		Washer (m4)	10	Appelez-nous	-
026	NLA		Label, Program	10	Appelez-nous	-
030	W10675663		Microprocessor Chip(mcb40)   (Replaces: 23003822)	10	Appelez-nous	-
032	23003872		Screw, Thumb	10	Appelez-nous	-
033	23003873		Sleeve	10	Appelez-nous	-
045	23003774		Washer 12	10	Appelez-nous	-
046	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
047	23002649		Screw (m6x10)	10	Appelez-nous	-
