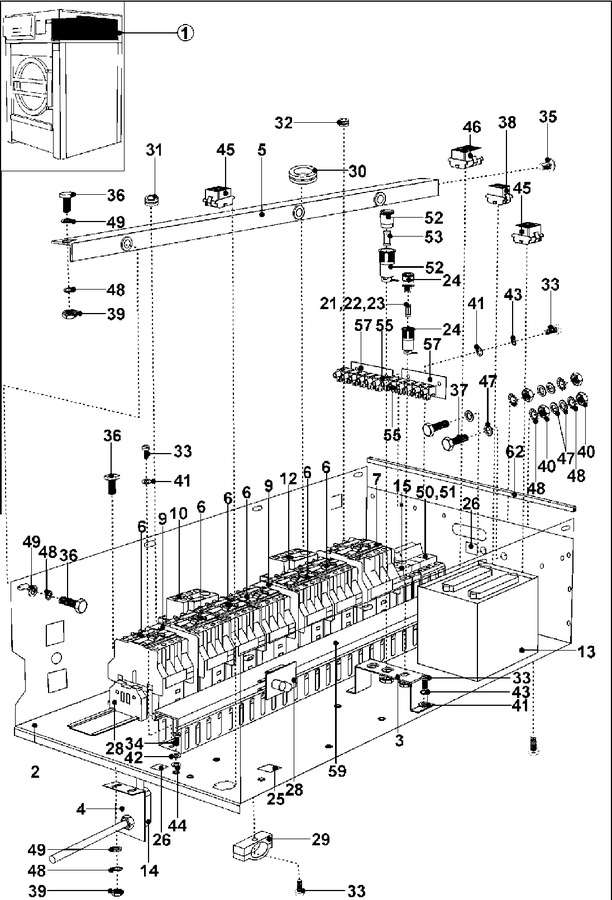

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23003150 | Switchboard | 10 |
|
- | ||||
| 002 | 23003151 | Board, Switchboard(complete)lu | 10 |
|
- | ||||
| 003 | NLA | Holder, Fuse | 10 |
|
- | ||||
| 004 | NLA | Holder, Vibration Switch | 10 |
|
- | ||||
| 005 | NLA | Holder (complete) | 10 |
|
- | ||||
| 006 | 23001101 | Contactor (lc1-d1201 M7) | 10 |
|
- | ||||
| 007 | 23001103 | Contactor (lc1-d3201 M7) | 10 |
|
- | ||||
| 008 | 23001340 | Contactor (lc1-d4011) | 10 |
|
- | ||||
| 009 | 23001119 | Mechanical Interlock, Contacto | 10 |
|
- | ||||
| 010 | 23001106 | Relay, Thermal Overload (4-6a) | 10 |
|
- | ||||
| 012 | 23001105 | Relay, Thermal Overload (9-13a | 10 |
|
- | ||||
| 013 | 23003708 | Transformer (250va)control Brd | 10 |
|
- | ||||
| 014 | 23002775 | Switch, Vibration | 10 |
|
- | ||||
| 015 | 23001717 | Breaker, Circuit | 10 |
|
- | ||||
| 019 | 23001094 | Bridge, Rectifier | 10 |
|
- | ||||
| 020 | NLA | Parts, Contact | 10 |
|
- | ||||
| 021 | WP23001508 | Fuse (1a) (Replaces: 23002918) | 10 |
|
$ 48.21 | ||||
| 022 | 23001463 | Fuse (2a) | 10 |
|
- | ||||
| 023 | 23002043 | Fuse (4a) | 10 |
|
- | ||||
| 024 | 23001462 | Holder, Fuse | 10 |
|
- | ||||
| 025 | 23003874 | Index Plates | 10 |
|
- | ||||
| 026 | 23002505 | Plate, Earth | 10 |
|
- | ||||
| 027 | 23003155 | Parts, Contactor | 10 |
|
- | ||||
| 028 | 23002110 | Terminal Wago | 10 |
|
$ 242.60 | ||||
| 029 | 23002428 | Clip, Cable | 10 |
|
- | ||||
| 030 | 23001117 | Ring, Rubber (dia. 25) | 10 |
|
- | ||||
| 031 | NLA | Passage, Cable (13 X 2) | 10 |
|
- | ||||
| 032 | NLA | Bushing, Rubber | 10 |
|
- | ||||
| 033 | 23001609 | Screw (m4x12) | 10 |
|
- | ||||
| 034 | 23002650 | Screw (m6x12) | 10 |
|
- | ||||
| 035 | NLA | Screw (m6x10) | 10 |
|
- | ||||
| 036 | 23002649 | Screw (m6x10) | 10 |
|
- | ||||
| 037 | 23002806 | Screw (m6 X 25) | 10 |
|
- | ||||
| 038 | 23002154 | Board, Terminal (6 Poles) | 10 |
|
- | ||||
| 039 | 23002651 | Nut (m6) | 10 |
|
- | ||||
| 040 | 23001515 | Nut (m6) | 10 |
|
- | ||||
| 041 | 23001610 | Washer (4.3) | 10 |
|
- | ||||
| 042 | 23002129 | Washer (m4) | 10 |
|
- | ||||
| 043 | 23002400 | Washer | 10 |
|
- | ||||
| 044 | 23002656 | Washer (4.3) | 10 |
|
- | ||||
| 045 | 23001722 | Board, Terminal (amp 9 Poles) | 10 |
|
- | ||||
| 046 | 23002798 | Board,terminal (12 Pole) | 10 |
|
- | ||||
| 047 | WP311093 | Washer (6) (Replaces: 23002726) | 10 |
|
$ 7.25 | ||||
| 048 | 20007283 | Washer, Spring Lock (6) (Replaces: 23002440) | 10 |
|
$ 504.91 | ||||
| 049 | 23002282 | Washer (6) | 10 |
|
- | ||||
| 050 | 23003158 | Fuse, Disconnecter | 10 |
|
- | ||||
| 051 | 23002802 | Disconnector, Fuse (pv10gg32a) | 10 |
|
- | ||||
| 052 | 23002210 | Holder, Fuse | 10 |
|
- | ||||
| 053 | WP22001555 | Fuse 1a 6x32 (Replaces: 23003385) | 10 |
|
Immediately | $ 27.33 | |||
| 054 | NLA | Rivet | 10 |
|
- | ||||
| 055 | 23002154 | Board, Terminal (6 Poles) | 10 |
|
- | ||||
| 057 | 23001115 | Insulation Paper | 10 |
|
- | ||||
| 058 | NLA | Holder, Fuses | 10 |
|
- | ||||
| 059 | 23001551 | Gutter, Cable (plastic) | 10 |
|
- | ||||
| 062 | 23002473 | Rubber, Protective | 10 |
|
$ 4.52 |
