SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Basket And Outer Shell Assy


04 - Inner Tub


05 - Front Counter Weight


06 - Trunnion And Bearing Assy

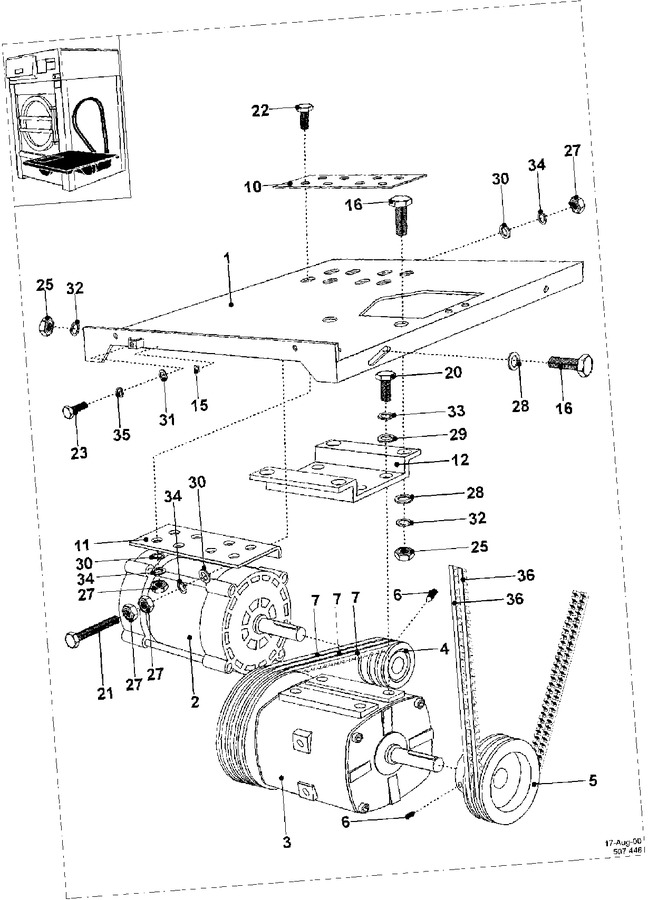

07 - Motor And Basket Pulley


08 - Idler Pulley


09 - Door


10 - Door Lock


11 - Soap Box


12 - Top Cover


13 - Control Panel


14 - Electrical Components


15 - Soap Injection And Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003083		Plate, Drive (complete)	10	Appelez-nous	-
002	23003084		Motor, Wash (208-240v, 60hz)	10	Appelez-nous	-
003	23003085		Motor, Spin (208-240v, 60hz)lu	10	Appelez-nous	-
004	23003086		V-pulley, Wash Motor	10	Appelez-nous	-
005	23003087		V-pulley, Spin Motor	10	Appelez-nous	-
006	23001658		Screw (m6x10)	10			$ 18.77
007	23003093		V-belt	10	Appelez-nous	-
010	NLA		Washer	10	Appelez-nous	-
011	NLA		Holder, Washing Motor	10	Appelez-nous	-
012	23003090		Bridge	10	Appelez-nous	-
015	23002505		Plate, Earth	10	Appelez-nous	-
016	23002661		Screw (m12x35)	10	Appelez-nous	-
020	23002648		Screw (m10x20)	10	Appelez-nous	-
021	NLA		Screw (m8x80)	10	Appelez-nous	-
022	23002434		Screw (m8x30)	10	Appelez-nous	-
023	23001733		Screw (m6x10)	10	Appelez-nous	-
025	NLA		Nut (m12)	10	Appelez-nous	-
027	23002435		Nut (m8)	10	Appelez-nous	-
028	23002657		Washer (13)	10	Appelez-nous	-
029	23002655		Washer (10.5)	10	Appelez-nous	-
030	23002653		Washer (8/6)	10	Appelez-nous	-
031	23002282		Washer (6)	10	Appelez-nous	-
032	23002658		Washer (12)	10	Appelez-nous	-
033	23002654		Washer (10)	10	Appelez-nous	-
034	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
035	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
036	23003854		V-belt (60 Hz) Lu	10			$ 61.36
037	NLA		Shield, Motor	10	Appelez-nous	-
