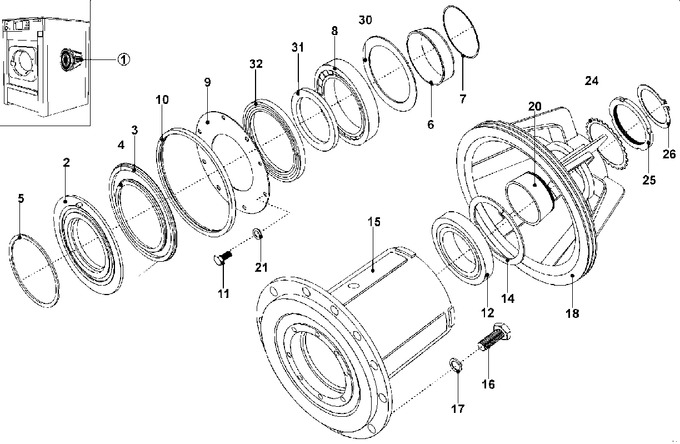

SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Basket And Outer Shell Assy


04 - Inner Tub


05 - Front Counter Weight


06 - Trunnion And Bearing Assy


07 - Motor And Basket Pulley


08 - Idler Pulley


09 - Door


10 - Door Lock


11 - Soap Box


12 - Top Cover


13 - Control Panel


14 - Electrical Components


15 - Soap Injection And Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003066		Hub (complete) Lu	10	Appelez-nous	-
002	23003842		Holder, Seal	10	Appelez-nous	-
003	WP23003843		V-seal Big   (Replaces: 23003843)	10			$ 472.05
004	23003069		Sealing	10	Appelez-nous	-
005	23003070		O-ring	10	Appelez-nous	-
006	23003844		Cone, Mounting	10	Appelez-nous	-
007	23003072		Ring	10	Appelez-nous	-
008	23003073		Bearing	10	Appelez-nous	-
009	23003845		Plate, Seal	10	Appelez-nous	-
010	23003102		Seal, U	10	Appelez-nous	-
011	23002422		Screw (m6 X 12)	10	Appelez-nous	-
012	23003076		Bearing	10	Appelez-nous	-
014	23003852		Ring, Retaining	10	Appelez-nous	-
015	23003846		Housing, Bearing	10	Appelez-nous	-
016	23003079		Screw (m12x40)	10	Appelez-nous	-
017	23002658		Washer (12)	10	Appelez-nous	-
018	23003080		Pulley, Belt	10	Appelez-nous	-
020	23001653		Bushing	10	Appelez-nous	-
021	23002281		Washer (6-copper)	10	Appelez-nous	-
024	23001868		Ring, Safety	10	Appelez-nous	-
025	23001867		Ring, Fastening	10	Appelez-nous	-
026	23003847		Ring, Retaining	10	Appelez-nous	-
030	23003848		Holder, Grease	10	Appelez-nous	-
031	23003849		Ring, Sealing	10	Appelez-nous	-
032	23003850		Sealing, Radial	10	Appelez-nous	-
032	23003851		Rebuilting Kit, Bearing Hou Lu	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
